S10LSVPCR0814A Right-Hand, Positive Rake, Boring Bar

S10LSVPCR0814A Right-Hand, Positive Rake, Boring Bar

SKU:
THC13482
|
UPC:
4960664585410
$151.77
(No reviews yet)
Width:
1.54 (in)
Height:
1.54 (in)
Depth:
8.27 (in)
Current Stock:
Adding to cart… The item has been added
Description
S10LSVPCR0814A Right-Hand, Positive Rake, Dynamic Bar Boring Bar with 117.5 Degree Lead Angle and 14.00mm Minimum Bore Dia.
Additional Information
Tool Style:
S...SVPC-A
Material:
Steel
Bar Type:
Steel Shank
Application:
Copying|Undercutting
Hand:
Right-Hand
Rake:
Positive
[KAPR] Tool Entering Angle (Degree):
117.5
Insert Shape:
35 Degree Diamond

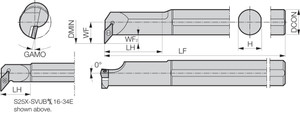

[DMIN] Minimum Bore Diameter (mm):
14.00
[H] Shank Height (mm):
9.00
[DCON] Connection Diameter (mm):
10.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Maximum structural thickness for higher toolholder rigidity and controlled chattering for stable machining
Feature 2:
Large chip pocket provides superior chip evacuation
Feature 3:
Anti-chatter vibration performance
Feature 4:
Maintains high cutting edge positional accuracy through the use of a special alloy, thereby achieving high precision machining
Feature 5:
5 (Axial), -8 (Radial) Rake Angle Dynamic Bar Boring Bar
ANSI Part Number:
S10LSVPCR0814A
ISO Part Number:
S10L-SVPCR08-14A
US Stock:
0
Worldwide Stock:
2
Compatible Inserts (Partial):
VCMT1515…, VCGW1515…
Old Material Number:
8829155
Insert Screw:
SB-2050TR
Wrench (for Insert Screw):
FT-6
[LF] Functional Length (mm):
140.00
[LH] Head Length (mm):
24.00
Product Notes:
Left-hand Insert for Right-hand Toolholder
[DMIN] Minimum Bore Diameter (Decimal Inch):
0.5512
[H] Shank Height (Decimal Inch):
0.3543
[DCON] Connection Diameter (Decimal Inch):
0.3937
[LF] Functional Length (Decimal Inch):
5.5118
[LH] Head Length (Decimal Inch):
0.9449
