S12MSDZCR0716A Right-Hand, Positive Rake, Boring Bar

S12MSDZCR0716A Right-Hand, Positive Rake, Boring Bar

SKU:
THC11796
|
UPC:
4960664584895
$172.04
(No reviews yet)
Width:
1.54 (in)
Height:
1.54 (in)
Depth:
8.27 (in)
Current Stock:
Adding to cart… The item has been added
Description
S12MSDZCR0716A Right-Hand, Positive Rake, Dynamic Bar Boring Bar with 93 Degree Lead Angle and 16.00mm Minimum Bore Dia.
Additional Information
Tool Style:
S...SDZC-A
Material:
Steel
Bar Type:
Steel Shank
Application:
Back Boring
Hand:
Right-Hand
Rake:
Positive

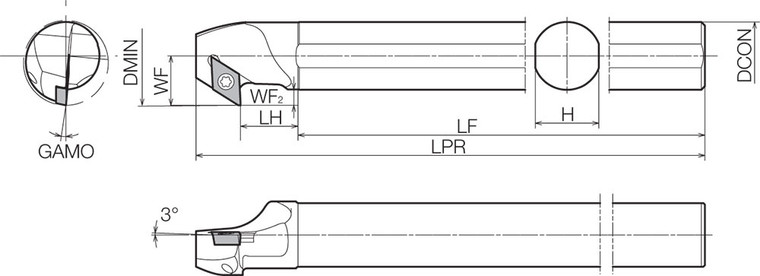

[KAPR] Tool Entering Angle (Degree):
93
Insert Shape:
55 Degree Diamond
[DMIN] Minimum Bore Diameter (mm):
16.00
[H] Shank Height (mm):
11.00
[DCON] Connection Diameter (mm):
12.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Maximum structural thickness for higher toolholder rigidity and controlled chattering for stable machining
Feature 2:
Large chip pocket provides superior chip evacuation
Feature 3:
Anti-chatter vibration performance
Feature 4:
Maintains high cutting edge positional accuracy through the use of a special alloy, thereby achieving high precision machining
Feature 5:
3 (Axial), -5 (Radial) Rake Angle Dynamic Bar Boring Bar
ANSI Part Number:
S12MSDZCR0716A
ISO Part Number:
S12M-SDZCR07-16A
US Stock:
3
Worldwide Stock:
2
Compatible Inserts (Partial):
DCGT215…, DCMX215…, DCMT215…, DCET215…, DCMW215…
Old Material Number:
8829054
Insert Screw:
SB-2560TR
Wrench (for Insert Screw):
FT-8
[LF] Functional Length (mm):
150.00
[LH] Head Length (mm):
14.00
[DMIN] Minimum Bore Diameter (Decimal Inch):
0.6299
[H] Shank Height (Decimal Inch):
0.4331
[DCON] Connection Diameter (Decimal Inch):
0.4724
[LF] Functional Length (Decimal Inch):
5.9055
[LH] Head Length (Decimal Inch):
0.5512
