S16HSVNR12XN Right-Hand, Micro Boring Bar Toolholder

S16HSVNR12XN Right-Hand, Micro Boring Bar Toolholder

SKU:
THC07459
$272.51
(No reviews yet)
Width:
1.38 (in)
Height:
1.14 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
S16HSVNR12XN Right-Hand Micro Bar Toolholder with a 16.00mm Shank Diameter for Micro Boring Applications
Additional Information
Tool Style:
S-SVNR-XN
Material:
Steel
Application:
Micro Boring
Hand:
Right-Hand
[H] Shank Height (mm):
15.00
[DCON] Connection Diameter (mm):
16.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Swiss IQ Bar
Feature 2:
Holder center axis core and insert center are coaxial type
Feature 3:
Round standard shank toolholder without side stopper
Feature 4:
Great for general horizontal and front-loading gang types
Feature 5:
For VNBXR… style inserts
ANSI Part Number:
S16HSVNR12XN
ISO Part Number:
S16H-SVNR12XN
Old Material Number:
8607595
Insert Screw:
SB-3080TR
Set Screw:
SP3X4*
Wrench (for Insert Screw):
FT-10
Compatible Bars (Partial):
VNBXR…

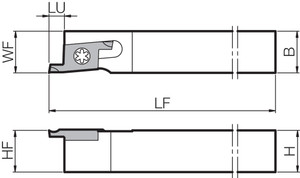

[LF] Functional Length (mm):
100.00
[LH] Head Length (mm):
23.00
Product Notes 1:
*S-SVNR-XN style toolholders (without side stopper) retain high index accuracy by easy restraint.
Product Notes 2:
For high-rigidity clamping, (e.g. when varying load direction of undercutting, internal and external, or face cutting by one tool), changing the SP3X4 screw to a HS3X4 screw with LW-1.5 wrench (sold separately)
Product Notes 3:
enables the toolholder's rigid clamping equivalent to the side stopper holders.
[H] Shank Height (Decimal Inch):
0.5906
[DCON] Connection Diameter (Decimal Inch):
0.6299
[LF] Functional Length (Decimal Inch):
3.9370
[LH] Head Length (Decimal Inch):
0.9055
