S16QSWUPL1618A Left-Hand, Positive Rake, Boring Bar
$158.83
(No reviews yet)
Write a Review
S16QSWUPL1618A Left-Hand, Positive Rake, Boring Bar
S16QSWUPL1618A Left-Hand, Positive Rake, Dynamic Bar Boring Bar with 93 Degree Lead Angle and 18.00mm Minimum Bore Dia.
- Tool Style:
- S...SWUP-A
- Material:
- Steel
- Bar Type:
- Steel Shank
- Application:
- Boring
- Hand:
- Left-Hand
- Rake:
- Positive

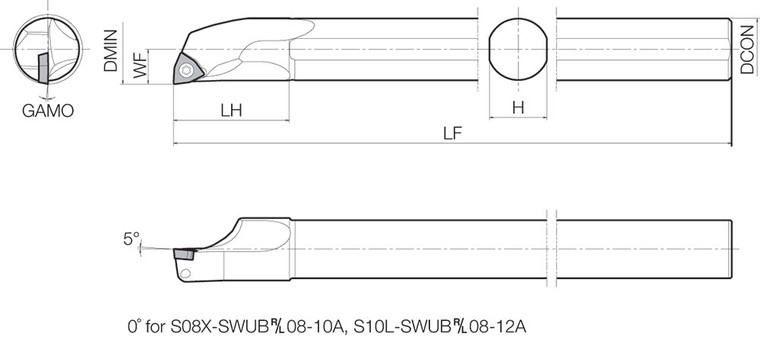

- [KAPR] Tool Entering Angle (Degree):
- 93
- Insert Shape:
- 80 Degree Trigon
- [DMIN] Minimum Bore Diameter (mm):
- 18.00
- [H] Shank Height (mm):
- 15.00
- [DCON] Connection Diameter (mm):
- 16.00
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- mm
- Feature 1:
- Maximum structural thickness for higher toolholder rigidity and controlled chattering for stable machining
- Feature 2:
- Large chip pocket provides superior chip evacuation
- Feature 3:
- Anti-chatter vibration performance
- Feature 4:
- Maintains high cutting edge positional accuracy through the use of a special alloy, thereby achieving high precision machining
- Feature 5:
- 5 (Axial), -3.5 (Radial) Rake Angle Dynamic Bar Boring Bar
- ANSI Part Number:
- S16QSWUPL1618A
- ISO Part Number:
- S16Q-SWUPL16-18A
- US Stock:
- 0
- Worldwide Stock:
- 0
- Compatible Inserts (Partial):
- WPMT32…, WPGW32…
- Old Material Number:
- 8829138
- Insert Screw:
- SB-4065TR
- Wrench (for Insert Screw):
- FT-15
- [LF] Functional Length (mm):
- 180.00
- [LH] Head Length (mm):
- 30.00
- Product Notes:
- Right-hand Insert for Left-hand Toolholder
- [DMIN] Minimum Bore Diameter (Decimal Inch):
- 0.7087
- [H] Shank Height (Decimal Inch):
- 0.5906
- [DCON] Connection Diameter (Decimal Inch):
- 0.6299
- [LF] Functional Length (Decimal Inch):
- 7.0866
- [LH] Head Length (Decimal Inch):
- 1.1811
