S20 CH10, DRC Magic Drill Series, Chamfer Attachment
$905.86
(No reviews yet)
Write a Review
S20 CH10, DRC Magic Drill Series, Chamfer Attachment
S20 CH10 Chamfer Attachment with a 2.50mm to 5.00mm Chamfer Depth that is Compatible with CH0503-45 Inserts for the DRC Magic Drill Series
- Tool Style:
- S-CH-DRC
- Material:
- Steel
- Application:
- Chamfering|Drilling
- Hand:
- Neutral

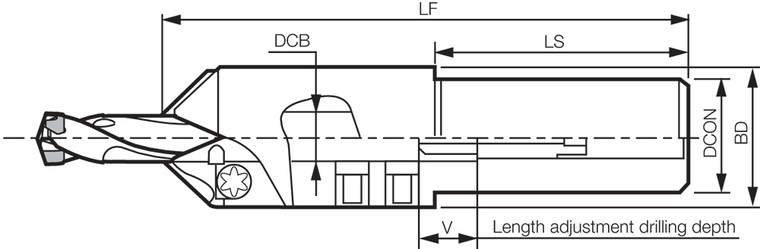

- [DCB] Connection Bore Diameter (mm):
- 10.00
- [DCON] Connection Diameter (mm):
- 20.00
- Unit (inch/mm):
- mm
- Adjustable Depth:
- Yes
- Feature 1:
- DRC Magic Drill Series Chamfer Attachment
- ANSI Part Number:
- S20CH10
- ISO Part Number:
- S20-CH10
- US Stock:
- 0
- Worldwide Stock:
- 0
- Compatible Inserts (Partial):
- CH0503-45
- Old Material Number:
- 8831201
- Clamp Screw:
- FS-10 (for Fixing Drill), MT-3 (for Mounting Inserts)
- Adjustment Screw:
- AJ-6X38
- Wrench (for Insert Screw):
- LW-3
- Wrench (for Clamp Screw):
- DT-9
- Tightening Torque:
- 10 Nm (for FS-10)
- Compatible Drill Body (Partial):
- SS10-DRC080M-…, S10-DRC05M-…, S10-DRC090M-…, S10-DRC095M-…
- [LF] Functional Length (mm):
- 122.00
- [DCB] Connection Bore Diameter (Decimal Inch):
- 0.3937
- [DCON] Connection Diameter (Decimal Inch):
- 0.7874
- [LF] Functional Length (Decimal Inch):
- 4.8032
- [LS] Shank Length (mm):
- 52.00
- [LS] Shank Length (Decimal Inch):
- 2.0473
