S200DRV1875414, DRV Magic Drill 1.8750" Cutting Diameter, 4xD, Coolant-Through Indexable Insert Drill
$797.07
(No reviews yet)
Write a Review
S200DRV1875414, DRV Magic Drill 1.8750" Cutting Diameter, 4xD, Coolant-Through Indexable Insert Drill
S200DRV1875414, DRV Magic Drill 1.8750" Cutting Diameter, 2.0000" Shank Diameter, 4xD, Coolant-Through Indexable Insert Drill
- Tool Style:
- DRV
- Material:
- Steel
- Application:
- Drilling
- Hand:
- Right-Hand

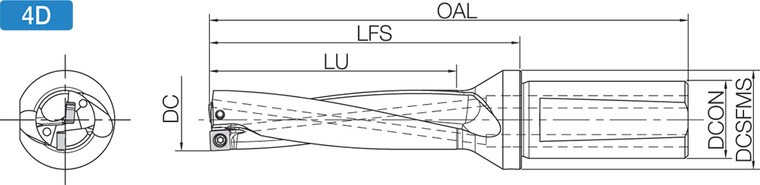

- [DCN] Cutting Diameter Minimum (mm):
- 47.63
- [DCX] Cutting Diameter Maximum (mm):
- 47.63
- Drill Depth by Diameter Ratio:
- 4xD
- [LU] Usable Length (mm):
- 190.50
- Number of Inserts:
- 2
- Number of Flutes:
- 2
- Shank Type:
- Standard Length
- Weldon Flat:
- Yes
- [DCON] Connection Diameter (mm):
- 50.80
- [DCSFMS] Contact Surface Diameter Machine Side (mm):
- 64.00
- Coolant Through (Yes/No):
- Yes
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- inch
- Feature 1:
- Excellent Drilling Precision with Less Vibration in Cutting Diameter
- Feature 2:
- Economical Inserts with 4 Cutting Edges
- Feature 3:
- Excellent Chip Evacuation with 6D Maximum Deep-Hole Drilling
- Feature 4:
- High Speed and Highly Efficient Machining with the Combination of CVD (Outer Edge) and PVD (Inner Edge) Inserts
- ANSI Part Number:
- S200DRV1875414
- ISO Part Number:
- S200-DRV1875-4-14
- US Stock:
- 5
- Worldwide Stock:
- 0
- Compatible Inserts (Partial):
- SCMT140508-…-E, SCMT140510-…-I
- Old Material Number:
- 8865240
- Insert Screw:
- SB-50120TRPH
- Wrench (for Insert Screw):
- TTP-20
- Compatible Inboard Inserts (Partial):
- SCMT140510-...-I
- Compatible Outboard Inserts (Partial):
- SCMT140508-...-E
- [DC] Cutting Diameter (Decimal Inch):
- 1.8752
- [DC] Cutting Diameter (mm):
- 47.63
- [DCN] Cutting Diameter Minimum (Decimal Inch):
- 1.8752
- [DCX] Cutting Diameter Maximum (Decimal Inch):
- 1.8752
- [LU] Usable Length (Decimal Inch):
- 7.5000
- [DCON] Connection Diameter (Decimal Inch):
- 2.0000
- [DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
- 2.5197
- [OAL] Overall Length (mm):
- 291.90
- [OAL] Overall Length (Decimal Inch):
- 11.4921
