S20QPCLNR0927 Right-Hand, Negative Rake, Boring Bar
$304.02
(No reviews yet)
Write a Review
S20QPCLNR0927 Right-Hand, Negative Rake, Boring Bar
S20QPCLNR0927 Right-Hand, Negative Rake, General Purpose Boring Bar with 95 Degree Lead Angle and 27.00mm Minimum Bore Dia.
- Tool Style:
- S...PCLN
- Material:
- Steel
- Bar Type:
- Steel Shank
- Application:
- Boring|Internal Facing
- Hand:
- Right-Hand
- Rake:
- Negative

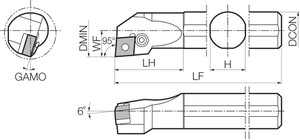

- [KAPR] Tool Entering Angle (Degree):
- 95
- Insert Shape:
- 80 Degree Diamond
- [DMIN] Minimum Bore Diameter (mm):
- 27.00
- [H] Shank Height (mm):
- 19.00
- [DCON] Connection Diameter (mm):
- 20.00
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Lever Lock / Lock Pin
- Unit (inch/mm):
- mm
- Feature 1:
- ~6 (Axial), -17 (Radial) Rake Angle General Purpose Boring Bar
- Feature 2:
- Great for Boring, Internal Facing Applications
- Feature 3:
- Compatible with Left-Hand CNMG33…, CNGG33… Inserts
- ANSI Part Number:
- S20QPCLNR0927
- ISO Part Number:
- S20Q-PCLNR09-27
- US Stock:
- 0
- Worldwide Stock:
- 0
- Compatible Inserts (Partial):
- CNMG33…, CNGG33…
- Old Material Number:
- 8802276
- Shim:
- LC-32N
- Shim Pin:
- LSP-1
- Punch:
- PC-1
- Lever:
- LL-1N
- Lock Screw:
- LS-1SN
- Wrench (for Lock Screw):
- FH-2.5
- [LF] Functional Length (mm):
- 180.00
- [LH] Head Length (mm):
- 37.00
- Product Notes:
- Left-hand Insert for Right-hand Toolholder
- [DMIN] Minimum Bore Diameter (Decimal Inch):
- 1.0630
- [H] Shank Height (Decimal Inch):
- 0.7480
- [DCON] Connection Diameter (Decimal Inch):
- 0.7874
- [LF] Functional Length (Decimal Inch):
- 7.0866
- [LH] Head Length (Decimal Inch):
- 1.4567
