S20QPTUNL1625 Left-Hand, Negative Rake, Boring Bar

S20QPTUNL1625 Left-Hand, Negative Rake, Boring Bar

SKU:
THC08063
|
UPC:
4960664746170
$304.02
(No reviews yet)
Width:
1.58 (in)
Height:
1.38 (in)
Depth:
8.31 (in)
Current Stock:
Adding to cart… The item has been added
Description
S20QPTUNL1625 Left-Hand, Negative Rake, General Purpose Boring Bar with 93 Degree Lead Angle and 25.00mm Minimum Bore Dia.
Additional Information
Tool Style:
S...PTUN16
Material:
Steel
Bar Type:
Steel Shank
Application:
Boring
Hand:
Left-Hand
Rake:
Negative

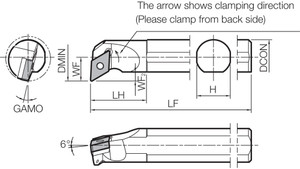

[KAPR] Tool Entering Angle (Degree):
93
Insert Shape:
60 Degree Triangle
[DMIN] Minimum Bore Diameter (mm):
25.00
[H] Shank Height (mm):
19.00
[DCON] Connection Diameter (mm):
20.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Lever Lock / Lock Pin
Unit (inch/mm):
mm
Feature 1:
~6 (Axial), -17 (Radial) Rake Angle General Purpose Boring Bar
Feature 2:
Great for Boring Applications
Feature 3:
Compatible with Right-Hand TNMG33…, TNGG33…, TNGA33…, TNMM33… Inserts
ANSI Part Number:
S20QPTUNL1625
ISO Part Number:
S20Q-PTUNL16-25
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
TNMG33…, TNGG33…, TNGA33…, TNMM33…
Old Material Number:
8844392
Shim Pin:
P-03S
Lever:
LL-03SN
Lock Screw:
LS-03SN
Wrench (for Lock Screw):
FH-2.5
[LF] Functional Length (mm):
180.00
[LH] Head Length (mm):
37.00
Product Notes:
Right-hand Insert for Left-hand Toolholder
[DMIN] Minimum Bore Diameter (Decimal Inch):
0.9843
[H] Shank Height (Decimal Inch):
0.7480
[DCON] Connection Diameter (Decimal Inch):
0.7874
[LF] Functional Length (Decimal Inch):
7.0866
[LH] Head Length (Decimal Inch):
1.4567
