S250JSTWL15, Micro Face Grooving Toolholder

S250JSTWL15, Micro Face Grooving Toolholder

SKU:
THC04162
|
UPC:
4960664453481
$316.42
(No reviews yet)
Width:
1.58 (in)
Height:
1.38 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
S250JSTWL15, Left-Hand, Twin Bar, Micro Face Grooving Toolholder with a 3.00mm Max Depth of Cut for Face Grooving Applications
Additional Information
Tool Style:
S...STW
Material:
Steel
Grooving Type:
External Face Grooving
Application:
Micro Face Grooving
Hand:
Left-Hand

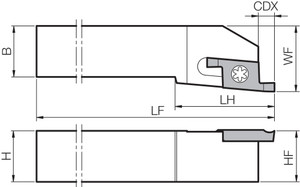

[CDX] Max Depth of Cut (mm):
3.00
[CWN] Cutting Width Minimum (mm):
0.50
[CWX] Cutting Width Maximum (mm):
2.00
[LU] Usable Length (mm):
22.00
[H] Shank Height (mm):
23.00
[DCON] Connection Diameter (mm):
25.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Left-Hand Micro Face Grooving Twin Bar
Feature 2:
3.00mm Max Depth of Cut
Feature 3:
Compatible with TWFGL... inserts
ANSI Part Number:
S250JSTWL15
ISO Part Number:
S25.0J-STWL15
US Stock:
0
Worldwide Stock:
8
Compatible Inserts (Partial):
TWFGL…
Old Material Number:
8831075
Insert Screw:
SB-3080TR
Wrench (for Insert Screw):
LTW-10S
Compatible Bars (Partial):
TWFGL...
[LF] Functional Length (mm):
110.00
[CW] Cutting Width (Decimal Inch):
0.0197 - 0.0787
[CW] Cutting Width (mm):
0.50 - 2.00
[CDX] Max Depth of Cut (Decimal Inch):
0.1181
[CWN] Cutting Width Minimum (Decimal Inch):
0.0197
[CWX] Cutting Width Maximum (Decimal Inch):
0.0787
[LU] Usable Length (Decimal Inch):
0.8661
[H] Shank Height (Decimal Inch):
0.9055
[DCON] Connection Diameter (Decimal Inch):
0.9843
[LF] Functional Length (Decimal Inch):
4.3307
