S25XCTUPL1634 Left-Hand, Positive Rake, Boring Bar

S25XCTUPL1634 Left-Hand, Positive Rake, Boring Bar

SKU:
THC03684
$217.15
(No reviews yet)
Width:
1.97 (in)
Height:
1.77 (in)
Depth:
9.92 (in)
Current Stock:
Adding to cart… The item has been added
Description
S25XCTUPL1634 Left-Hand, Positive Rake, General Purpose Boring Bar with 93 Degree Lead Angle and 34.00mm Minimum Bore Dia.
Additional Information
Tool Style:
S...CTUP
Material:
Steel
Bar Type:
Steel Shank
Application:
Boring
Hand:
Left-Hand
Rake:
Positive

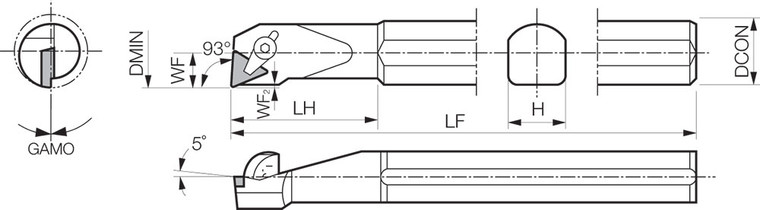

[KAPR] Tool Entering Angle (Degree):
93
Insert Shape:
60 Degree Triangle
[DMIN] Minimum Bore Diameter (mm):
34.00
[H] Shank Height (mm):
23.00
[DCON] Connection Diameter (mm):
25.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Top Clamp
Unit (inch/mm):
mm
Feature 1:
~5 (Axial), -0 (Radial) Rake Angle General Purpose Boring Bar
Feature 2:
Great for Boring Applications
Feature 3:
Compatible with Right-Hand TPMR32…, TPGR32…, TPM32…, TPG32… Inserts
ANSI Part Number:
S25XCTUPL1634
ISO Part Number:
S25X-CTUPL16-34
Compatible Inserts (Partial):
TPMR32…, TPGR32…, TPM32…, TPG32…
Old Material Number:
8813312
Clamp Set:
CPS-3
Wrench (for Clamp Screw):
LW-3
Product Notes:
Right-hand Insert for Left-hand Toolholder
[LF] Functional Length (mm):
220.00
[LH] Head Length (mm):
60.00
[DMIN] Minimum Bore Diameter (Decimal Inch):
1.3386
[H] Shank Height (Decimal Inch):
0.9055
[DCON] Connection Diameter (Decimal Inch):
0.9843
[LF] Functional Length (Decimal Inch):
8.6614
[LH] Head Length (Decimal Inch):
2.3622
