S32 CH20 DRA, DRA Magic Drill Series, Chamfer Attachment

S32 CH20 DRA, DRA Magic Drill Series, Chamfer Attachment

SKU:
THD12008
|
UPC:
4960664905386
$546.81
(No reviews yet)
Width:
2.36 (in)
Height:
2.36 (in)
Depth:
14.17 (in)
Current Stock:
Adding to cart… The item has been added
Description
S32 CH20 DRA Chamfer Attachment with a 4.00mm to 8.00mm Chamfer Depth that is Compatible with CT12T3-45DA Inserts for the DRA Magic Drill Series
Additional Information
Tool Style:
S-CH-DRA
Material:
Steel
Application:
Chamfering|Drilling
Hand:
Neutral

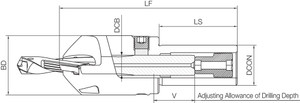

[DCB] Connection Bore Diameter (mm):
20.00
[DCON] Connection Diameter (mm):
32.00
Unit (inch/mm):
mm
Adjustable Depth:
Yes
Feature 1:
DRA Magic Drill Series Chamfer Attachment
ANSI Part Number:
S32CH20DRA
ISO Part Number:
S32-CH20-DRA
US Stock:
0
Worldwide Stock:
3
Compatible Inserts (Partial):
CT12T3-45DA
Old Material Number:
8865270
Clamp:
CP-CH20 (for Fixing Drill), C09N (for Mounting Inserts)
Clamp Screw:
HS16X10 (for Fixing Drill), W6X18N (for Mounting Inserts)
Adjustment Screw:
AJ-22x35
Coolant Plug Screw:
BNP6
Wrench (for Clamp Screw):
DTM-15
Tightening Torque:
45 Nm (for HS16X10), 3.5 Nm (for W6X18N)
Compatible Drill Body (Partial):
SS20-DRA…
[LF] Functional Length (mm):
150.00
Product Notes 1:
Clamps and clamp screws for mounting inserts need to be replaced regularly.
[DCB] Connection Bore Diameter (Decimal Inch):
0.7874
[DCON] Connection Diameter (Decimal Inch):
1.2598
[LF] Functional Length (Decimal Inch):
5.9055
[LS] Shank Length (mm):
62.00
[LS] Shank Length (Decimal Inch):
2.4410
