S32SSVUBL1640A Left-Hand, Positive Rake, Boring Bar
$307.61
(No reviews yet)
Write a Review
S32SSVUBL1640A Left-Hand, Positive Rake, Boring Bar
S32SSVUBL1640A Left-Hand, Positive Rake, Dynamic Bar Boring Bar with 93 Degree Lead Angle and 40.00mm Minimum Bore Dia.
- Tool Style:
- S...SVUB-A
- Material:
- Steel
- Bar Type:
- Steel Shank
- Application:
- Copying
- Hand:
- Left-Hand
- Rake:
- Positive

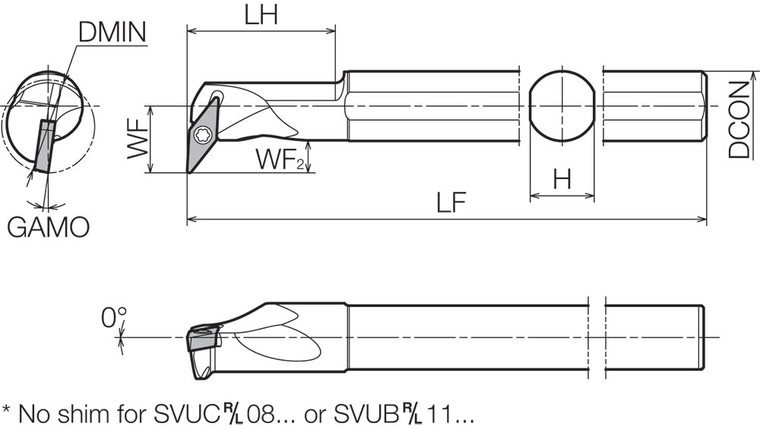

- [KAPR] Tool Entering Angle (Degree):
- 93
- Insert Shape:
- 35 Degree Diamond
- [DMIN] Minimum Bore Diameter (mm):
- 40.00
- [H] Shank Height (mm):
- 31.00
- [DCON] Connection Diameter (mm):
- 32.00
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- mm
- Feature 1:
- Maximum structural thickness for higher toolholder rigidity and controlled chattering for stable machining
- Feature 2:
- Large chip pocket provides superior chip evacuation
- Feature 3:
- Anti-chatter vibration performance
- Feature 4:
- Maintains high cutting edge positional accuracy through the use of a special alloy, thereby achieving high precision machining
- Feature 5:
- 0 (Axial), -9 (Radial) Rake Angle Dynamic Bar Boring Bar
- ANSI Part Number:
- S32SSVUBL1640A
- ISO Part Number:
- S32S-SVUBL16-40A
- US Stock:
- 0
- Worldwide Stock:
- 0
- Compatible Inserts (Partial):
- VBMT33…, VBGT33…, VBGW33… VCGT33…
- Old Material Number:
- 8829176
- Insert Screw:
- SB-40125TRN
- Shim:
- SVN-32N*
- Shim Screw:
- SS-4N
- Wrench (for Insert Screw):
- FT-15
- Wrench (for Shim Screw):
- LW-4
- [LF] Functional Length (mm):
- 250.00
- [LH] Head Length (mm):
- 84.00
- Product Notes:
- Right-hand Insert for Left-hand Toolholder
- Product Notes 1:
- *Shim SVN-32S (sold separately) is recommended when using inserts with a corner-R (RE) of 0.008" or 1/64".
- [DMIN] Minimum Bore Diameter (Decimal Inch):
- 1.5748
- [H] Shank Height (Decimal Inch):
- 1.2205
- [DCON] Connection Diameter (Decimal Inch):
- 1.2598
- [LF] Functional Length (Decimal Inch):
- 9.8425
- [LH] Head Length (Decimal Inch):
- 3.3071
