S32SWWLNR0840 Right-Hand, Negative Rake, Boring Bar

S32SWWLNR0840 Right-Hand, Negative Rake, Boring Bar

SKU:
THC63946
|
UPC:
4960664099269
$426.00
(No reviews yet)
Width:
2.13 (in)
Height:
1.97 (in)
Depth:
11.69 (in)
Current Stock:
Adding to cart… The item has been added
Description
S32SWWLNR0840 Right-Hand, Negative Rake, General Purpose Boring Bar with 95 Degree Lead Angle and 40.00mm Minimum Bore Dia.
Additional Information
Tool Style:
S...WWLN08
Material:
Steel
Bar Type:
Steel Shank
Application:
Boring|Internal Facing
Hand:
Right-Hand
Rake:
Negative

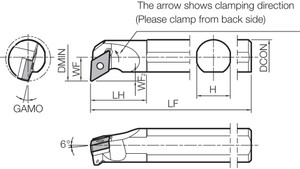

[KAPR] Tool Entering Angle (Degree):
95
Insert Shape:
80 Degree Trigon
[DMIN] Minimum Bore Diameter (mm):
40.00
[H] Shank Height (mm):
30.00
[DCON] Connection Diameter (mm):
32.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
~6 (Axial), -10 (Radial) Rake Angle General Purpose Boring Bar
Feature 2:
Great for Boring, Internal Facing Applications
Feature 3:
Compatible with Left-Hand WNMG43…, WNGG43…, WNMM43…, WNGA43… Inserts
ANSI Part Number:
S32SWWLNR0840
ISO Part Number:
S32S-WWLNR08-40
US Stock:
1
Worldwide Stock:
0
Compatible Inserts (Partial):
WNMG43…, WNGG43…, WNMM43…, WNGA43…
Old Material Number:
8807002
[LF] Functional Length (mm):
250.00
[LH] Head Length (mm):
50.00
Product Notes:
Left-hand Insert for Right-hand Toolholder
[DMIN] Minimum Bore Diameter (Decimal Inch):
1.5748
[H] Shank Height (Decimal Inch):
1.1811
[DCON] Connection Diameter (Decimal Inch):
1.2598
[LF] Functional Length (Decimal Inch):
9.8425
[LH] Head Length (Decimal Inch):
1.9685
