S40DRV330M411, DRV Magic Drill 33.00mm Cutting Diameter, 4xD, Coolant-Through Indexable Insert Drill
$745.23
(No reviews yet)
Write a Review
S40DRV330M411, DRV Magic Drill 33.00mm Cutting Diameter, 4xD, Coolant-Through Indexable Insert Drill
S40DRV330M411, DRV Magic Drill 33.00mm Cutting Diameter, 40.00mm Shank Diameter, 4xD, Coolant-Through Indexable Insert Drill
- Tool Style:
- DRV
- Material:
- Steel
- Application:
- Drilling
- Hand:
- Right-Hand

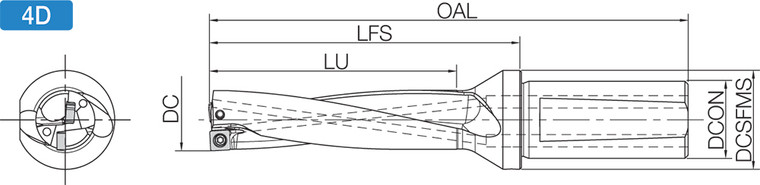

- [DCN] Cutting Diameter Minimum (mm):
- 33.00
- [DCX] Cutting Diameter Maximum (mm):
- 33.00
- Drill Depth by Diameter Ratio:
- 4xD
- [LU] Usable Length (mm):
- 132.00
- Number of Inserts:
- 2
- Number of Flutes:
- 2
- Shank Type:
- Standard Length
- Weldon Flat:
- Yes
- [DCON] Connection Diameter (mm):
- 40.00
- [DCSFMS] Contact Surface Diameter Machine Side (mm):
- 49.00
- Coolant Through (Yes/No):
- Yes
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- mm
- Feature 1:
- Economical inserts with 4 cutting edges and excellent chip evacuation
- Feature 2:
- 2xD to 6xD drilling lineup with 4 chipbreakers for various machining applications
- Feature 3:
- High speed and highly efficient machining with the combination of a CVD outer insert and PVD inner insert
- Feature 4:
- Excellent hole accuracy with a highly rigid design for better chatter resistance
- ANSI Part Number:
- S40DRV330M411
- ISO Part Number:
- S40-DRV330M-4-11
- US Stock:
- 0
- Worldwide Stock:
- 2
- Compatible Inserts (Partial):
- SCMT110406-…-E, SCMT110410-…-I
- Old Material Number:
- 8861089
- Insert Screw:
- SB-4086TRP
- Wrench (for Insert Screw):
- DTPM-15
- Compatible Inboard Inserts (Partial):
- SCMT110410-...-I
- Compatible Outboard Inserts (Partial):
- SCMT110406-...-E
- [DC] Cutting Diameter (Decimal Inch):
- 1.2992
- [DC] Cutting Diameter (mm):
- 33.00
- [DCN] Cutting Diameter Minimum (Decimal Inch):
- 1.2992
- [DCX] Cutting Diameter Maximum (Decimal Inch):
- 1.2992
- [LU] Usable Length (Decimal Inch):
- 5.1969
- [DCON] Connection Diameter (Decimal Inch):
- 1.5748
- [DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
- 1.9291
- [OAL] Overall Length (mm):
- 227.00
- [OAL] Overall Length (Decimal Inch):
- 8.9370
