S40DRV480M214, DRV Magic Drill 48.00mm Cutting Diameter, 2xD, Coolant-Through Indexable Insert Drill

S40DRV480M214, DRV Magic Drill 48.00mm Cutting Diameter, 2xD, Coolant-Through Indexable Insert Drill

SKU:
THD11918
|
UPC:
4960664898459
$761.38
(No reviews yet)
Width:
3.27 (in)
Height:
3.27 (in)
Depth:
15.47 (in)
Current Stock:
Adding to cart… The item has been added
Description
S40DRV480M214, DRV Magic Drill 48.00mm Cutting Diameter, 40.00mm Shank Diameter, 2xD, Coolant-Through Indexable Insert Drill
Additional Information
Tool Style:
DRV
Material:
Steel
Application:
Drilling
Hand:
Right-Hand

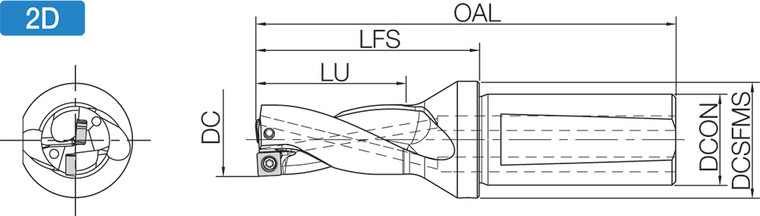

[DCN] Cutting Diameter Minimum (mm):
48.00
[DCX] Cutting Diameter Maximum (mm):
48.00
Drill Depth by Diameter Ratio:
2xD
[LU] Usable Length (mm):
96.00
Number of Inserts:
2
Number of Flutes:
2
Shank Type:
Standard Length
Weldon Flat:
Yes
[DCON] Connection Diameter (mm):
40.00
[DCSFMS] Contact Surface Diameter Machine Side (mm):
54.00
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Excellent Drilling Precision with Less Vibration in Cutting Diameter
Feature 2:
Economical Inserts with 4 Cutting Edges
Feature 3:
Excellent Chip Evacuation with 6D Maximum Deep-Hole Drilling
Feature 4:
High Speed and Highly Efficient Machining with the Combination of CVD (Outer Edge) and PVD (Inner Edge) Inserts
ANSI Part Number:
S40DRV480M214
ISO Part Number:
S40-DRV480M-2-14
US Stock:
0
Worldwide Stock:
2
Compatible Inserts (Partial):
SCMT140508-…-E, SCMT140510-…-I
Old Material Number:
8864484
Insert Screw:
SB-50120TRPH
Wrench (for Insert Screw):
TTP-20
Compatible Inboard Inserts (Partial):
SCMT140510-...-I
Compatible Outboard Inserts (Partial):
SCMT140508-...-E
[DC] Cutting Diameter (Decimal Inch):
1.8898
[DC] Cutting Diameter (mm):
48.00
[DCN] Cutting Diameter Minimum (Decimal Inch):
1.8898
[DCX] Cutting Diameter Maximum (Decimal Inch):
1.8898
[LU] Usable Length (Decimal Inch):
3.7795
[DCON] Connection Diameter (Decimal Inch):
1.5748
[DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
2.1260
[OAL] Overall Length (mm):
197.00
[OAL] Overall Length (Decimal Inch):
7.7559
