S40DRZ4216815, DRZ Magic Drill 42.00mm Cutting Diameter, 4xD, Coolant-Through Indexable Insert Drill

S40DRZ4216815, DRZ Magic Drill 42.00mm Cutting Diameter, 4xD, Coolant-Through Indexable Insert Drill

SKU:
THD01330
|
UPC:
4960664176137
$926.44
(No reviews yet)
Width:
2.76 (in)
Height:
2.76 (in)
Depth:
14.29 (in)
Current Stock:
Adding to cart… The item has been added
Description
S40DRZ4216815, DRZ Magic Drill 42.00mm Cutting Diameter, 40.00mm Shank Diameter, 4xD, Coolant-Through Indexable Insert Drill
Additional Information
Tool Style:
DRZ
Material:
Steel
Application:
Drilling
Hand:
Right-Hand

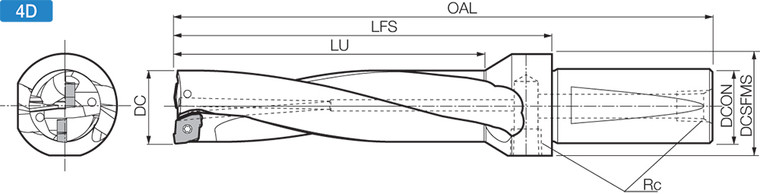

[DCN] Cutting Diameter Minimum (mm):
42.00
[DCX] Cutting Diameter Maximum (mm):
42.00
Drill Depth by Diameter Ratio:
4xD
[LU] Usable Length (mm):
168.00
Number of Inserts:
2
Number of Flutes:
2
Shank Type:
Standard Length
Weldon Flat:
Yes
[DCON] Connection Diameter (mm):
40.00
[DCSFMS] Contact Surface Diameter Machine Side (mm):
55.00
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Cost reduction by using an insert with 4 corners
Feature 2:
Suitable for various workpieces with a wide chipbreaker range
Feature 3:
Special edge design to divide the chip into 3 pieces
Feature 4:
Sharp cutting performance to prevent chattering
Feature 5:
Good surface finish
Feature 6:
Good chip evacuation, silent drilling and low cutting force design
ANSI Part Number:
S40DRZ4216815
ISO Part Number:
S40-DRZ42168-15
US Stock:
0
Worldwide Stock:
1
Compatible Inserts (Partial):
ZCMT150408…, ZCMT150406SP…
Old Material Number:
8806710
Insert Screw:
SB-5085TR
Plug 1:
GP-2
Wrench (for Insert Screw):
DT-20
[DC] Cutting Diameter (Decimal Inch):
1.6535
[DC] Cutting Diameter (mm):
42.00
[DCN] Cutting Diameter Minimum (Decimal Inch):
1.6535
[DCX] Cutting Diameter Maximum (Decimal Inch):
1.6535
[LU] Usable Length (Decimal Inch):
6.6142
[DCON] Connection Diameter (Decimal Inch):
1.5748
[DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
2.1654
[OAL] Overall Length (mm):
269.00
[OAL] Overall Length (Decimal Inch):
10.5906
