S75DRZ13540505G, DRZ Magic Drill 0.5310" Cutting Diameter, 3xD, Coolant-Through Indexable Insert Drill

S75DRZ13540505G, DRZ Magic Drill 0.5310" Cutting Diameter, 3xD, Coolant-Through Indexable Insert Drill

SKU:
THD89107
$497.78
(No reviews yet)
Width:
1.50 (in)
Height:
1.50 (in)
Depth:
4.50 (in)
Current Stock:
Adding to cart… The item has been added
Description
S75DRZ13540505G, DRZ Magic Drill 0.5310" Cutting Diameter, 0.7500" Shank Diameter, Coolant-Through Indexable Insert Drill
Additional Information
Tool Style:
DRZ
Material:
Steel
Application:
Drilling
Hand:
Right-Hand
[DCN] Cutting Diameter Minimum (mm):
13.49
[DCX] Cutting Diameter Maximum (mm):
13.49
Drill Depth by Diameter Ratio:
3xD
[LU] Usable Length (mm):
40.39
Number of Inserts:
2
Number of Flutes:
2
Shank Type:
Standard Length
Weldon Flat:
Yes
[DCON] Connection Diameter (mm):
19.05
[DCSFMS] Contact Surface Diameter Machine Side (mm):
26.92
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Screw
Unit (inch/mm):
inch
Feature 1:
Cost reduction by using an insert with 4 corners
Feature 2:
Suitable for various workpieces with a wide chipbreaker range
Feature 3:
Special edge design to divide the chip into 3 pieces
Feature 4:
Sharp cutting performance to prevent chattering
Feature 5:
Good surface finish
Feature 6:
Good chip evacuation, silent drilling and low cutting force design
ANSI Part Number:
S75DRZ13540505G
ISO Part Number:
S75-DRZ 13 5405-05-G
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
ZCMT050203…, ZCMT050203SP…, ZCMT050203SU
Old Material Number:
8603847
Insert Screw:
SB-2045TR
Plug 1:
GP-1N
Wrench (for Insert Screw):
FT-6

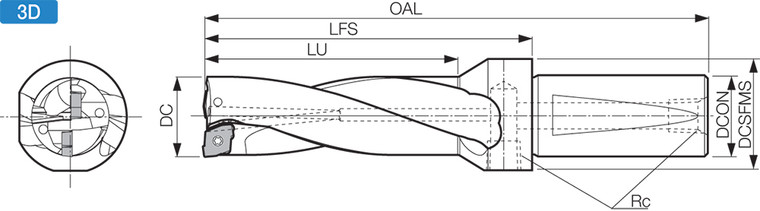

[DC] Cutting Diameter (Decimal Inch):
0.5311
[DC] Cutting Diameter (mm):
13.49
[DCN] Cutting Diameter Minimum (Decimal Inch):
0.5311
[DCX] Cutting Diameter Maximum (Decimal Inch):
0.5311
[LU] Usable Length (Decimal Inch):
1.5902
[DCON] Connection Diameter (Decimal Inch):
0.7500
[DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
1.0598
[OAL] Overall Length (mm):
108.46
[OAL] Overall Length (Decimal Inch):
4.2701
