SCLCR 2020K09, Indexable Turning Toolholder

SCLCR 2020K09, Indexable Turning Toolholder

SKU:
THC07500
|
UPC:
4960664110629
$98.03
(No reviews yet)
Width:
1.58 (in)
Height:
1.38 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
SCLCR 2020K09, Right-Hand, Positive Rake, 95 Degree Lead Angle, Indexable Turning Toolholder for Swiss, External Turning, Facing Applications
Additional Information
Tool Style:
SCLC
Material:
Steel
Application:
External Turning|Facing|Small Parts Machining
Hand:
Right-Hand
Rake:
Positive
[KAPR] Tool Entering Angle (Degree):
95
Insert Shape:
80 Degree Diamond
[H] Shank Height (mm):
20.00
[B] Shank Width (mm):
20.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Right-Hand Toolholder
Feature 2:
Application: Swiss, External Turning, Facing
Feature 3:
Screw Clamp Insert Holding Design
Feature 4:
Compatible with Right-Hand CCGT325…, CCMT325…, CCGW325…, CCMW325… Style Inserts
Feature 5:
Simple Mechanism with Fewer Parts for Finishing to Medium Machining
ANSI Part Number:
SCLCR2020K09
ISO Part Number:
SCLCR2020K-09
US Stock:
2
Worldwide Stock:
19
Compatible Inserts (Partial):
CCGT325…, CCMT325…, CCGW325…, CCMW325…
Old Material Number:
8806773
Insert Screw:
SB-4085TR
Wrench (for Insert Screw):
FT-15

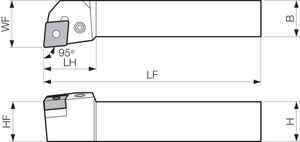

[LF] Functional Length (mm):
125.00
[LH] Head Length (mm):
20.00
[H] Shank Height (Decimal Inch):
0.7874
[B] Shank Width (Decimal Inch):
0.7874
[LF] Functional Length (Decimal Inch):
4.9213
[LH] Head Length (Decimal Inch):
0.7874
