SCLCR 8253FFJCT, Indexable Coolant-Through Turning Toolholder

SCLCR 8253FFJCT, Indexable Coolant-Through Turning Toolholder

SKU:
THC14896
|
UPC:
4960664897575
$467.21
(No reviews yet)
Width:
1.54 (in)
Height:
1.54 (in)
Depth:
8.27 (in)
Current Stock:
Adding to cart… The item has been added
Description
SCLCR 8253FFJCT, Right-Hand, Positive Rake, 95 Degree Lead Angle, Coolant Through, Indexable Turning Toolholder for External Turning, Copying Applications
Additional Information
Tool Style:
SCLC-JCT
Material:
Steel
Application:
Copying|External Turning
Hand:
Right-Hand
Rake:
Positive
[KAPR] Tool Entering Angle (Degree):
95
Insert Shape:
80 Degree Diamond
[H] Shank Height (mm):
15.88
[B] Shank Width (mm):
25.40
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Screw
Unit (inch/mm):
inch
Coolant Pressure Resistance (psi):
2,900
Feature 1:
Right-Hand Toolholder
Feature 2:
Application: External Turning, Copying
Feature 3:
Screw Clamp Insert Holding Design
Feature 4:
Compatible with Right-Hand CCGT325…, CCMT325…, CCGW325…, CCMW325… Style Inserts
Feature 5:
Double coolant holes provide coolant toward the cutting edge surface of the insert to efficiently cool the edge and provide greater wear resitance and longer tool life
ANSI Part Number:
SCLCR8253FFJCT
ISO Part Number:
SCLCR82.5-3FFJCT
US Stock:
4
Worldwide Stock:
0
Compatible Inserts (Partial):
CCGT325…, CCMT325…, CCGW325…, CCMW325…
Old Material Number:
8863853
Insert Screw:
SB-4085TR
Plug 1:
GP-1
Wrench (for Insert Screw):
FT-15

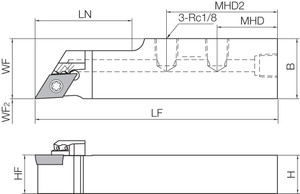

[LF] Functional Length (mm):
120.65
[H] Shank Height (Decimal Inch):
0.6252
[B] Shank Width (Decimal Inch):
1.0000
[LF] Functional Length (Decimal Inch):
4.7500
