SCMT 040205GHE CA520D Grade CVD Carbide, Indexable Drilling Insert
$18.35
(No reviews yet)
Write a Review
SCMT 040205GHE CA520D Grade CVD Carbide, Indexable Drilling Insert
SCMT 040205GHE CA520D Grade CVD Carbide, Right-Hand Drilling Insert for (P) Carbon/Alloy Steel, (P) Tool Steel, (M) Stainless Steel (DRV Magic Drill)
- Tool Style:
- SCMT
- Insert Size:
- 040205
- Chipbreaker:
- GH-E
- Insert Grade:
- CA520D
- Material:
- Carbide
- Coating Process:
- CVD

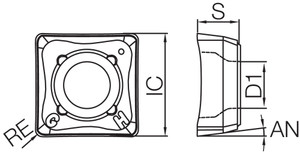

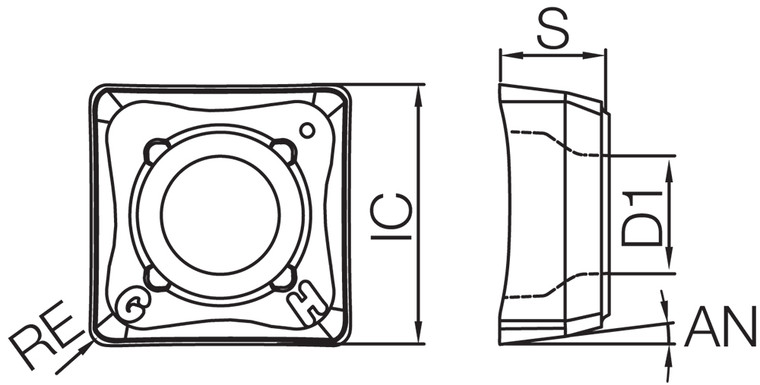

- [IC] Inscribed Circle (mm):
- 4.80
- [S] Thickness (mm):
- 2.20
- [RE] Corner Radius (mm):
- 0.50
- Application:
- Drilling
- Hand:
- Right-Hand
- Rake:
- Positive
- [EPSR] Insert Included Angle (Degree):
- 90
- Primary Workpiece Material:
- (P) Tool Steel|(K) Cast Iron
- Insert Shape:
- 90 Degree Square
- Number of Cutting Edges:
- 4
- Insert Holding Method:
- Screw
- Feature 1:
- Outboard insert for drilling
- Feature 2:
- Tough edge chipbreaker 1st choice for machining cast iron
- Feature 3:
- Reduced defects common to though-hole drilling
- Feature 4:
- High speed CVD grade for drilling steel and stainless steel
- ANSI Part Number:
- SCMT040205GHECA520D
- ISO Part Number:
- SCMT040205-GH-E
- US Stock:
- 30
- Worldwide Stock:
- 20
- Old Material Number:
- 8861058
- Compatible Toolholder (Partial):
- S..-DRV…-04
- [IC] Inscribed Circle:
- 0.189"
- [S] Thickness:
- 0.087"
- [RE] Corner Radius:
- 0.020"
