SCMT 070305GHE CA415D Grade CVD Carbide, Indexable Drilling Insert

SCMT 070305GHE CA415D Grade CVD Carbide, Indexable Drilling Insert

SKU:
TMG05672
|
UPC:
4960664837984
$19.51
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
SCMT 070305GHE CA415D Grade CVD Carbide, Right-Hand Drilling Insert for (K) Cast Iron (DRV Magic Drill)
Additional Information
Tool Style:
SCMT
Insert Size:
070305
Chipbreaker:
GH-E
Insert Grade:
CA415D
Material:
Carbide
Coating Process:
CVD

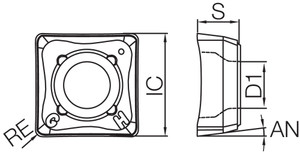

[IC] Inscribed Circle (mm):
7.65
[S] Thickness (mm):
3.18
[RE] Corner Radius (mm):
0.50
Application:
Drilling
Hand:
Right-Hand
Rake:
Positive
[EPSR] Insert Included Angle (Degree):
90
Primary Workpiece Material:
(P) Tool Steel|(K) Cast Iron
Insert Shape:
90 Degree Square
Number of Cutting Edges:
4
Insert Holding Method:
Screw
Feature 1:
Outboard insert for drilling
Feature 2:
Tough edge chipbreaker 1st choice for machining cast iron
Feature 3:
Reduced defects common to though-hole drilling
Feature 4:
High speed CVD grade for cast iron drilling
ANSI Part Number:
SCMT070305GHECA415D
ISO Part Number:
SCMT070305-GH-E
US Stock:
940
Worldwide Stock:
190
Old Material Number:
8858480
Compatible Toolholder (Partial):
S..-DRV…-07
[IC] Inscribed Circle:
0.301"
[S] Thickness:
1/8"
[RE] Corner Radius:
0.020"
