SCMT 110406GME CA415D Grade CVD Carbide, Indexable Drilling Insert

SCMT 110406GME CA415D Grade CVD Carbide, Indexable Drilling Insert

SKU:
TMG05710
|
UPC:
4960664875443
$23.05
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
SCMT 110406GME CA415D Grade CVD Carbide, Right-Hand Drilling Insert for (K) Cast Iron (DRV Magic Drill)
Additional Information
Tool Style:
SCMT
Insert Size:
110406
Chipbreaker:
GM-E
Insert Grade:
CA415D
Material:
Carbide
Coating Process:
CVD

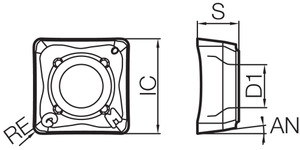

[IC] Inscribed Circle (mm):
11.00
[S] Thickness (mm):
4.50
[RE] Corner Radius (mm):
0.60
Application:
Drilling
Hand:
Right-Hand
Rake:
Positive
[EPSR] Insert Included Angle (Degree):
90
Primary Workpiece Material:
(P) Carbon/Alloy Steel
Insert Shape:
90 Degree Square
Number of Cutting Edges:
4
Insert Holding Method:
Screw
Feature 1:
Outboard insert for drilling
Feature 2:
General purpose chipbreaker for stable deep-hole drilling
Feature 3:
High speed CVD grade for cast iron drilling
ANSI Part Number:
SCMT110406GMECA415D
ISO Part Number:
SCMT110406-GM-E
US Stock:
10
Worldwide Stock:
0
Old Material Number:
8861052
Compatible Toolholder (Partial):
S..-DRV…-11
[IC] Inscribed Circle:
0.433"
[S] Thickness:
0.177"
[RE] Corner Radius:
0.024"
