SCMT 140508SME CA520D Grade CVD Carbide, Indexable Drilling Insert

SCMT 140508SME CA520D Grade CVD Carbide, Indexable Drilling Insert

SKU:
TMF05741
|
UPC:
4960664898886
$23.85
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
SCMT 140508SME CA520D Grade CVD Carbide, Right-Hand Drilling Insert for (P) Carbon/Alloy Steel, (P) Tool Steel, (M) Stainless Steel (DRV Magic Drill)
Additional Information
Tool Style:
SCMT
Insert Size:
140508
Chipbreaker:
SM-E
Insert Grade:
CA520D
Material:
Carbide
Coating Process:
CVD

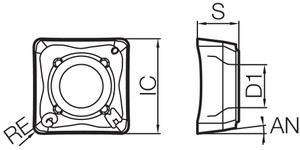

[IC] Inscribed Circle (mm):
13.80
[S] Thickness (mm):
5.00
[RE] Corner Radius (mm):
0.80
Application:
Drilling
Hand:
Right-Hand
Rake:
Positive
[EPSR] Insert Included Angle (Degree):
90
Primary Workpiece Material:
(M) Stainless Steel
Insert Shape:
90 Degree Square
Number of Cutting Edges:
4
Insert Holding Method:
Screw
Feature 1:
Outboard insert for drilling
Feature 2:
Stable chip control when drilling gummy materials like stainiless steel
Feature 3:
High speed CVD grade for drilling steel and stainless steel
ANSI Part Number:
SCMT140508SMECA520D
ISO Part Number:
SCMT140508-SM-E
US Stock:
70
Worldwide Stock:
300
Old Material Number:
8864546
Compatible Toolholder (Partial):
S..-DRV…-14
[IC] Inscribed Circle:
0.543"
[S] Thickness:
0.197"
[RE] Corner Radius:
1/32"
