SCMT 140510GMI PR1535 Grade PVD Carbide, Indexable Drilling Insert

SCMT 140510GMI PR1535 Grade PVD Carbide, Indexable Drilling Insert

SKU:
TLC05745
|
UPC:
4960664898862
$23.85
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
SCMT 140510GMI PR1535 Grade PVD Carbide, Right-Hand Drilling Insert for (M) Stainless Steel, (P) Carbon/Alloy Steel, (P) Tool Steel, (K) Cast Iron (DRV Magic Drill)
Additional Information
Tool Style:
SCMT
Insert Size:
140510
Chipbreaker:
GM-I
Insert Grade:
PR1535
Material:
Carbide
Coating Process:
PVD

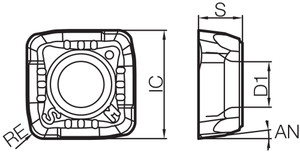

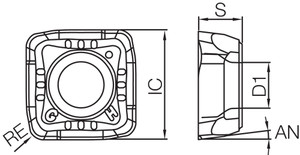

[IC] Inscribed Circle (mm):
14.90
[S] Thickness (mm):
5.00
[RE] Corner Radius (mm):
1.00
Application:
Drilling
Hand:
Right-Hand
Rake:
Positive
[EPSR] Insert Included Angle (Degree):
90
Primary Workpiece Material:
(P) Carbon/Alloy Steel
Insert Shape:
90 Degree Square
Number of Cutting Edges:
4
Insert Holding Method:
Screw
Feature 1:
Inboard insert for drilling
Feature 2:
General purpose chipbreaker for stable deep-hole drilling
Feature 3:
Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
Feature 4:
Application: PVD for titanium alloy and precipitation hardened stainless steel
ANSI Part Number:
SCMT140510GMIPR1535
ISO Part Number:
SCMT140510-GM-I
US Stock:
180
Worldwide Stock:
0
Old Material Number:
8864353
Compatible Toolholder (Partial):
S..-DRV…-14
[IC] Inscribed Circle:
0.587"
[S] Thickness:
0.197"
[RE] Corner Radius:
0.039"
