SCMT 170608GME CA520D Grade CVD Carbide, Indexable Drilling Insert

SCMT 170608GME CA520D Grade CVD Carbide, Indexable Drilling Insert

SKU:
TMF05750
|
UPC:
4960664899821
$25.42
(No reviews yet)
Width:
1.77 (in)
Height:
0.59 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
SCMT 170608GME CA520D Grade CVD Carbide, Right-Hand Drilling Insert for (P) Carbon/Alloy Steel, (P) Tool Steel, (M) Stainless Steel (DRV Magic Drill)
Additional Information
Tool Style:
SCMT
Insert Size:
170608
Chipbreaker:
GM-E
Insert Grade:
CA520D
Material:
Carbide
Coating Process:
CVD

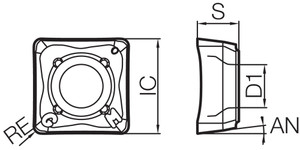

[IC] Inscribed Circle (mm):
16.80
[S] Thickness (mm):
6.58
[RE] Corner Radius (mm):
0.80
Application:
Drilling
Hand:
Right-Hand
Rake:
Positive
[EPSR] Insert Included Angle (Degree):
90
Primary Workpiece Material:
(P) Carbon/Alloy Steel
Insert Shape:
90 Degree Square
Number of Cutting Edges:
4
Insert Holding Method:
Screw
Feature 1:
Outboard insert for drilling
Feature 2:
General purpose chipbreaker for stable deep-hole drilling
Feature 3:
High speed CVD grade for drilling steel and stainless steel
ANSI Part Number:
SCMT170608GMECA520D
ISO Part Number:
SCMT170608-GM-E
US Stock:
30
Worldwide Stock:
0
Old Material Number:
8864823
Compatible Toolholder (Partial):
S..-DRV…-17
[IC] Inscribed Circle:
0.661"
[S] Thickness:
0.259"
[RE] Corner Radius:
1/32"
