SDJCR 1235JX11F15JCTM, Indexable Coolant-Through Turning Toolholder
$429.08
(No reviews yet)
Write a Review
SDJCR 1235JX11F15JCTM, Indexable Coolant-Through Turning Toolholder
SDJCR 1235JX11F15JCTM, Right-Hand, Positive Rake, 93 Degree Lead Angle, Direct Coolant-Through Turning Toolholder for Swiss, External Turning, Copying Applications
- Tool Style:
- SDJC-JCTM
- Material:
- Steel
- Application:
- Copying|External Turning
- Hand:
- Right-Hand
- Rake:
- Positive
- [KAPR] Tool Entering Angle (Degree):
- 93
- Insert Shape:
- 55 Degree Diamond
- [H] Shank Height (mm):
- 12.00
- [B] Shank Width (mm):
- 35.00
- Coolant Through (Yes/No):
- Yes
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- mm
- Coolant Pressure Resistance (psi):
- 2,900
- Feature 1:
- Direct Coolant-Through Holders for Small Parts Machining
- Feature 2:
- Supports Internal Coolant with or without Piping Systems
- Feature 3:

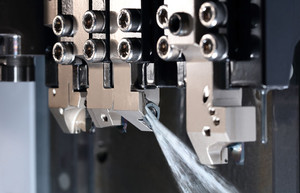

- Double coolant holes simultaneously cool insert cutting edge and control chip flow
- Feature 4:
- Compatible with Right-Hand or Neutral DCGT325…, DCMX325…, DCMT325…, DCET325…, DCGW325…, DCMW325… Style Inserts
- ANSI Part Number:
- SDJCR1235JX11F15JCTM
- ISO Part Number:
- SDJCR1235JX11F15JCTM
- US Stock:
- 0
- Worldwide Stock:
- 0
- Compatible Inserts (Partial):
- DCGT325…, DCMX325…, DCMT325…, DCET325…, DCGW325…, DCMW325…
- Old Material Number:
- 8867207
- Insert Screw:
- SB-4085TR
- Plug 1:
- GP-1
- Plug 2:
- HS5X4LP
- Wrench (for Insert Screw):
- FT-15
- [LF] Functional Length (mm):
- 120.00
- [H] Shank Height (Decimal Inch):
- 0.4724
- [B] Shank Width (Decimal Inch):
- 1.3780
- [LF] Functional Length (Decimal Inch):
- 4.7244
