SDJCR 1616JX11FFY, Indexable Y-Axis Turning Toolholder

SDJCR 1616JX11FFY, Indexable Y-Axis Turning Toolholder

SKU:
THC14922
|
UPC:
4960664923922
$270.38
(No reviews yet)
Width:
1.54 (in)
Height:
1.54 (in)
Depth:
8.27 (in)
Current Stock:
Adding to cart… The item has been added
Description
SDJCR 1616JX11FFY, Right-Hand, Positive Rake, 93 Degree Lead Angle, Y-Axis Style Turning Toolholder for Swiss, External Turning, Copying Applications
Additional Information
Tool Style:
SDJC-Y
Material:
Steel
Application:
Copying|External Turning
Hand:
Right-Hand
Rake:
Positive
[KAPR] Tool Entering Angle (Degree):
93
Insert Shape:
55 Degree Diamond
[H] Shank Height (mm):
16.00
[B] Shank Width (mm):
16.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Y-Axis Toolholder Design
Feature 2:
Excellent Chip Evacuation with Y-axis Turning Prevents Chip Entanglement
Feature 3:
For External Turning and Copying Applications
Feature 4:
Compatible with Right-Hand or Neutral DCGT325…, DCMX325…, DCMT325…, DCET325…, DCGW325…, DCMW325… Style Inserts
ANSI Part Number:
SDJCR1616JX11FFY
ISO Part Number:
SDJCR1616JX-11FF-Y
US Stock:
0
Worldwide Stock:
1
Compatible Inserts (Partial):
DCGT325…, DCMX325…, DCMT325…, DCET325…, DCGW325…, DCMW325…
Old Material Number:
8865294
Insert Screw:
SB-4085TR
Wrench (for Insert Screw):
FT-15

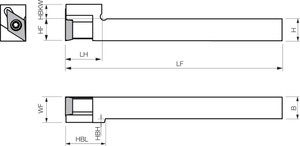

[LF] Functional Length (mm):
120.00
[LH] Head Length (mm):
25.00
[H] Shank Height (Decimal Inch):
0.6299
[B] Shank Width (Decimal Inch):
0.6299
[LF] Functional Length (Decimal Inch):
4.7244
[LH] Head Length (Decimal Inch):
0.9843
