SDLCL 1010JX07FF, Indexable Turning Toolholder

SDLCL 1010JX07FF, Indexable Turning Toolholder

SKU:
THC08377
$91.82
(No reviews yet)
Width:
1.38 (in)
Height:
1.14 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
SDLCL 1010JX07FF, Left-Hand, Positive Rake, 95 Degree Lead Angle, Indexable Turning Toolholder for Swiss, External Turning, Copying Applications
Additional Information
Tool Style:
SDLC-FF
Material:
Steel
Application:
Copying|External Turning|Small Parts Machining
Hand:
Left-Hand
Rake:
Positive
[KAPR] Tool Entering Angle (Degree):
95
Insert Shape:
55 Degree Diamond
[H] Shank Height (mm):
10.00
[B] Shank Width (mm):
10.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Left-Hand Toolholder
Feature 2:
Application: Swiss, External Turning, Copying
Feature 3:
Screw Clamp Insert Holding Design
Feature 4:
Compatible with Left-Hand DCGT215…, DCMX215…, DCMT215…, DCET215…, DCGW215…, DCMW215… Style Inserts
Feature 5:
Simple Mechanism with Fewer Parts for Finishing to Medium Machining
ANSI Part Number:
SDLCL1010JX07FF
ISO Part Number:
SDLCL1010JX-07FF
Compatible Inserts (Partial):
DCGT215…, DCMX215…, DCMT215…, DCET215…, DCGW215…, DCMW215…
Old Material Number:
8835068
Insert Screw:
SB-2570TR
Wrench (for Insert Screw):
FT-8

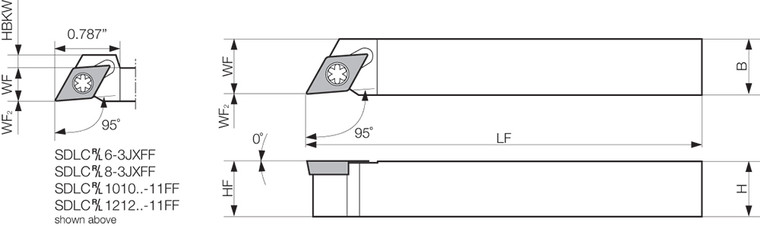

[LF] Functional Length (mm):
120.00
[H] Shank Height (Decimal Inch):
0.3937
[B] Shank Width (Decimal Inch):
0.3937
[LF] Functional Length (Decimal Inch):
4.7244
