SDLPL 1010JX11FF, Indexable Turning Toolholder

SDLPL 1010JX11FF, Indexable Turning Toolholder

SKU:
THC08491
$91.82
(No reviews yet)
Width:
1.58 (in)
Height:
1.38 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
SDLPL 1010JX11FF, Left-Hand, Positive Rake, 95 Degree Lead Angle, Indexable Turning Toolholder for Swiss, External Turning, Copying Applications
Additional Information
Tool Style:
SDLP-FF
Material:
Steel
Application:
Copying|External Turning|Small Parts Machining
Hand:
Left-Hand
Rake:
Positive
[KAPR] Tool Entering Angle (Degree):
95
Insert Shape:
55 Degree Diamond
[H] Shank Height (mm):
10.00
[B] Shank Width (mm):
10.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Left-Hand Toolholder
Feature 2:
Application: Swiss, External Turning, Copying
Feature 3:
Screw Clamp Insert Holding Design
Feature 4:
Compatible with Left-Hand DPET325… Style Inserts
Feature 5:
Simple Mechanism with Fewer Parts for Finishing to Medium Machining
ANSI Part Number:
SDLPL1010JX11FF
ISO Part Number:
SDLPL1010JX-11FF
Compatible Inserts (Partial):
DPET325…
Old Material Number:
8835082
Insert Screw:
SB-4085TR
Wrench (for Insert Screw):
FT-15

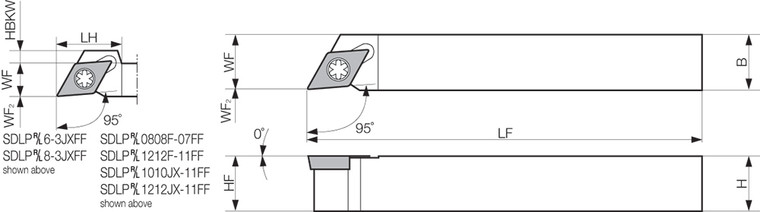

[LF] Functional Length (mm):
120.00
[LH] Head Length (mm):
20.00
[H] Shank Height (Decimal Inch):
0.3937
[B] Shank Width (Decimal Inch):
0.3937
[LF] Functional Length (Decimal Inch):
4.7244
[LH] Head Length (Decimal Inch):
0.7874
