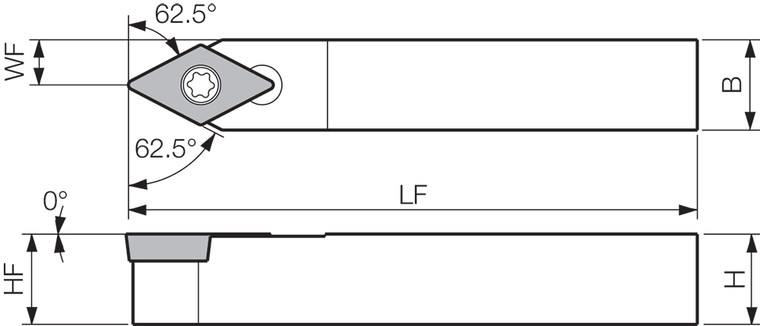

SDNCN 83A, Indexable Turning Toolholder

SDNCN 83A, Indexable Turning Toolholder

SKU:
THC89243
$66.90
(No reviews yet)
Width:
1.38 (in)
Height:
1.14 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
SDNCN 83A, Neutral, Positive Rake, 63 Degree Lead Angle, Indexable Turning Toolholder for Swiss, External Turning, Copying Applications
Additional Information
Tool Style:
SDNCN
Material:
Steel
Application:
Copying|External Turning|Small Parts Machining
Hand:
Neutral
Rake:
Positive
[KAPR] Tool Entering Angle (Degree):
63
Insert Shape:
55 Degree Diamond
[H] Shank Height (mm):
12.70
[B] Shank Width (mm):
12.70
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
inch
Feature 1:
Neutral Toolholder
Feature 2:
Application: Swiss, External Turning, Copying
Feature 3:
Screw Clamp Insert Holding Design
Feature 4:
Compatible with Neutral DCGT325…, DCMX325…, DCMT325…, DCET325…, DCGW325…, DCMW325… Style Inserts
Feature 5:
Simple Mechanism with Fewer Parts for Finishing to Medium Machining
ANSI Part Number:
SDNCN83A
ISO Part Number:
SDNCN83A
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
DCGT325…, DCMX325…, DCMT325…, DCET325…, DCGW325…, DCMW325…
Old Material Number:
8604160
[LF] Functional Length (mm):
101.60
[H] Shank Height (Decimal Inch):
0.5000
[B] Shank Width (Decimal Inch):
0.5000
[LF] Functional Length (Decimal Inch):
4.0000
