SDR0578, Stinger Drill 0.5780" Cutting Diameter, Indexable Insert Drill
$145.01
(No reviews yet)
Write a Review
SDR0578, Stinger Drill 0.5780" Cutting Diameter, Indexable Insert Drill
SDR0578, Stinger Drill 0.5780" Cutting Diameter, 0.5000" Shank Diameter, Indexable Insert Drill
- Tool Style:
- SDR
- Material:
- Steel
- Application:
- Drilling
- Hand:
- Right-Hand

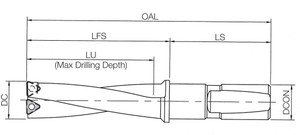

- [DCN] Cutting Diameter Minimum (mm):
- 14.68
- [DCX] Cutting Diameter Maximum (mm):
- 14.68
- Drill Depth by Diameter Ratio:
- n/a
- [LU] Usable Length (mm):
- 41.40
- Number of Inserts:
- 2
- Number of Flutes:
- 2
- Shank Type:
- Standard Length
- Weldon Flat:
- Yes
- [DCON] Connection Diameter (mm):
- 12.70
- Coolant Through (Yes/No):
- Yes
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- inch
- Feature 1:
- Economical alternative to the Magic Drill
- Feature 2:
- Perfect for job shops or small quantity production
- Feature 3:
- Ideal for low horsepower machines
- ANSI Part Number:
- SDR0578
- ISO Part Number:
- SDR0578
- Compatible Inserts (Partial):
- TCMT12122HP…
- Old Material Number:
- 8601086
- Insert Screw:
- SCR-07
- Wrench (for Insert Screw):
- T6
- [DC] Cutting Diameter (Decimal Inch):
- 0.5780
- [DC] Cutting Diameter (mm):
- 14.68
- [DCN] Cutting Diameter Minimum (Decimal Inch):
- 0.5780
- [DCX] Cutting Diameter Maximum (Decimal Inch):
- 0.5780
- [LU] Usable Length (Decimal Inch):
- 1.6299
- [DCON] Connection Diameter (Decimal Inch):
- 0.5000
- [LS] Shank Length (mm):
- 38.10
- [LS] Shank Length (Decimal Inch):
- 1.5000
- [OAL] Overall Length (mm):
- 92.20
- [OAL] Overall Length (Decimal Inch):
- 3.6299
