SDR0781, Stinger Drill 0.7810" Cutting Diameter, Indexable Insert Drill

SDR0781, Stinger Drill 0.7810" Cutting Diameter, Indexable Insert Drill

SKU:
OTM86498
$158.33
(No reviews yet)
Width:
1.50 (in)
Height:
1.50 (in)
Depth:
5.00 (in)
Current Stock:
Adding to cart… The item has been added
Description
SDR0781, Stinger Drill 0.7810" Cutting Diameter, 0.6250" Shank Diameter, Indexable Insert Drill
Additional Information
Tool Style:
SDR
Material:
Steel
Application:
Drilling
Hand:
Right-Hand
[DCN] Cutting Diameter Minimum (mm):
19.84
[DCX] Cutting Diameter Maximum (mm):
19.84
Drill Depth by Diameter Ratio:
n/a
[LU] Usable Length (mm):
57.15
Number of Inserts:
2
Number of Flutes:
2
Shank Type:
Standard Length
Weldon Flat:
Yes
[DCON] Connection Diameter (mm):
15.88
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Screw
Unit (inch/mm):
inch
Feature 1:
Economical alternative to the Magic Drill
Feature 2:
Perfect for job shops or small quantity production
Feature 3:
Ideal for low horsepower machines
ANSI Part Number:
SDR0781
ISO Part Number:
SDR0781
Compatible Inserts (Partial):
TCMT18152HP…
Old Material Number:
8601104
Insert Screw:
SCR-05
Wrench (for Insert Screw):
T7

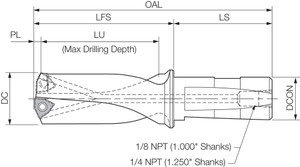

[DC] Cutting Diameter (Decimal Inch):
0.7811
[DC] Cutting Diameter (mm):
19.84
[DCN] Cutting Diameter Minimum (Decimal Inch):
0.7811
[DCX] Cutting Diameter Maximum (Decimal Inch):
0.7811
[LU] Usable Length (Decimal Inch):
2.2500
[DCON] Connection Diameter (Decimal Inch):
0.6252
[LS] Shank Length (mm):
47.75
[LS] Shank Length (Decimal Inch):
1.8799
[OAL] Overall Length (mm):
117.60
[OAL] Overall Length (Decimal Inch):
4.6299
