SF0500DRA095M3, DRA Magic Drill 0.3740-0.3933" Cutting Diameter, 3xD, Replaceable Tip Drill

SF0500DRA095M3, DRA Magic Drill 0.3740-0.3933" Cutting Diameter, 3xD, Replaceable Tip Drill

SKU:
THD11176
|
UPC:
4960664771561
$337.47
(No reviews yet)
Width:
1.54 (in)
Height:
1.54 (in)
Depth:
8.27 (in)
Current Stock:
Adding to cart… The item has been added
Description
SF0500DRA095M3, DRA Magic Drill 0.3740-0.3933" Cutting Diameter, 0.5000" Diameter Flange Shank, Coolant-Through Replaceable Tip Drill
Additional Information
Tool Style:
SF…DRA
Material:
Steel
Application:
Drilling
Hand:
Right-Hand

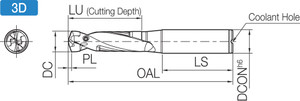

[DCN] Cutting Diameter Minimum (mm):
9.50
[DCX] Cutting Diameter Maximum (mm):
9.99
Drill Depth by Diameter Ratio:
3xD
[LU] Usable Length (mm):
30.00
Number of Inserts:
1
Number of Flutes:
2
Shank Type:
Flange Shank
Weldon Flat:
No
[DCON] Connection Diameter (mm):
12.70
[DCSFMS] Contact Surface Diameter Machine Side (mm):
16.00
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Screw
Unit (inch/mm):
inch
Feature 1:
Low Cutting Force Design Improves Hole Accuracy
Feature 2:
Optimal Web Thickness Limits Deflection
Feature 3:
Fine Chip Breaking Even in Deep Hole Drilling Applications
Feature 4:
Easy Insert Replacement
Feature 5:
Long Tool Life and Stable Machining of Various Workpieces
ANSI Part Number:
SF0500DRA095M3
ISO Part Number:
SF0500-DRA095M-3
Compatible Inserts (Partial):
DA0950M-… ~ DA0990M-…
Old Material Number:
8608167
Clamp Screw:
HS-2524TRP
Wrench (for Clamp Screw):
FTP-5
Tightening Torque:
0.5 Nm (4.4 in/lb)
[DC] Cutting Diameter (Decimal Inch):
0.3740 - 0.3933
[DC] Cutting Diameter (mm):
9.50 - 9.99
[DCN] Cutting Diameter Minimum (Decimal Inch):
0.3740
[DCX] Cutting Diameter Maximum (Decimal Inch):
0.3933
[LU] Usable Length (Decimal Inch):
1.1811
[DCON] Connection Diameter (Decimal Inch):
0.5000
[DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
0.6299
[LS] Shank Length (mm):
45.01
[LS] Shank Length (Decimal Inch):
1.7721
[OAL] Overall Length (mm):
89.99
[OAL] Overall Length (Decimal Inch):
3.5429
