SF0625DRA130M3, DRA Magic Drill 0.5118-0.5311" Cutting Diameter, 3xD, Replaceable Tip Drill
$366.70
(No reviews yet)
Write a Review
SF0625DRA130M3, DRA Magic Drill 0.5118-0.5311" Cutting Diameter, 3xD, Replaceable Tip Drill
SF0625DRA130M3, DRA Magic Drill 0.5118-0.5311" Cutting Diameter, 0.6250" Diameter Flange Shank, Coolant-Through Replaceable Tip Drill
- Tool Style:
- SF…DRA
- Material:
- Steel
- Application:
- Drilling
- Hand:
- Right-Hand
- [DCN] Cutting Diameter Minimum (mm):
- 13.00
- [DCX] Cutting Diameter Maximum (mm):
- 13.49
- Drill Depth by Diameter Ratio:
- 3xD
- [LU] Usable Length (mm):
- 40.49
- Number of Inserts:
- 1
- Number of Flutes:
- 2
- Shank Type:
- Flange Shank
- Weldon Flat:
- No
- [DCON] Connection Diameter (mm):
- 15.88
- [DCSFMS] Contact Surface Diameter Machine Side (mm):
- 19.99
- Coolant Through (Yes/No):
- Yes
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- inch
- Feature 1:
- Low Cutting Force Design Improves Hole Accuracy
- Feature 2:
- Optimal Web Thickness Limits Deflection
- Feature 3:
- Fine Chip Breaking Even in Deep Hole Drilling Applications
- Feature 4:
- Easy Insert Replacement
- Feature 5:
- Long Tool Life and Stable Machining of Various Workpieces
- ANSI Part Number:
- SF0625DRA130M3
- ISO Part Number:
- SF0625-DRA130M-3
- Compatible Inserts (Partial):
- DA1300M-… ~ DA1340M-…
- Old Material Number:
- 8608171
- Clamp Screw:
- HS-2534TRP
- Wrench (for Clamp Screw):
- FTP-5
- Tightening Torque:
- 0.5 Nm (4.4 in/lb)

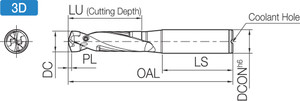

- [DC] Cutting Diameter (Decimal Inch):
- 0.5118 - 0.5311
- [DC] Cutting Diameter (mm):
- 13.00 - 13.49
- [DCN] Cutting Diameter Minimum (Decimal Inch):
- 0.5118
- [DCX] Cutting Diameter Maximum (Decimal Inch):
- 0.5311
- [LU] Usable Length (Decimal Inch):
- 1.5941
- [DCON] Connection Diameter (Decimal Inch):
- 0.6252
- [DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
- 0.7870
- [LS] Shank Length (mm):
- 48.01
- [LS] Shank Length (Decimal Inch):
- 1.8902
- [OAL] Overall Length (mm):
- 108.00
- [OAL] Overall Length (Decimal Inch):
- 4.2520
