SF1000DRA240M3, DRA Magic Drill 0.9449-0.9839" Cutting Diameter, 3xD, Replaceable Tip Drill

SF1000DRA240M3, DRA Magic Drill 0.9449-0.9839" Cutting Diameter, 3xD, Replaceable Tip Drill

SKU:
THD11216
|
UPC:
4960664771769
$593.97
(No reviews yet)
Width:
1.54 (in)
Height:
1.54 (in)
Depth:
8.27 (in)
Current Stock:
Adding to cart… The item has been added
Description
SF1000DRA240M3, DRA Magic Drill 0.9449-0.9839" Cutting Diameter, 1.0000" Diameter Flange Shank, Coolant-Through Replaceable Tip Drill
Additional Information
Tool Style:
SF…DRA
Material:
Steel
Application:
Drilling
Hand:
Right-Hand

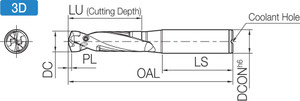

[DCN] Cutting Diameter Minimum (mm):
24.00
[DCX] Cutting Diameter Maximum (mm):
24.99
Drill Depth by Diameter Ratio:
3xD
[LU] Usable Length (mm):
75.01
Number of Inserts:
1
Number of Flutes:
2
Shank Type:
Flange Shank
Weldon Flat:
No
[DCON] Connection Diameter (mm):
25.40
[DCSFMS] Contact Surface Diameter Machine Side (mm):
32.00
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Screw
Unit (inch/mm):
inch
Feature 1:
Low Cutting Force Design Improves Hole Accuracy
Feature 2:
Optimal Web Thickness Limits Deflection
Feature 3:
Fine Chip Breaking Even in Deep Hole Drilling Applications
Feature 4:
Easy Insert Replacement
Feature 5:
Long Tool Life and Stable Machining of Various Workpieces
ANSI Part Number:
SF1000DRA240M3
ISO Part Number:
SF1000-DRA240M-3
Compatible Inserts (Partial):
DA2400M-… ~ DA2450M-…
Old Material Number:
8608182
Clamp Screw:
HS-4067TRP
Wrench (for Clamp Screw):
DTP-7
Tightening Torque:
1.2 Nm (10.6 in/lb)
[DC] Cutting Diameter (Decimal Inch):
0.9449 - 0.9839
[DC] Cutting Diameter (mm):
24.00 - 24.99
[DCN] Cutting Diameter Minimum (Decimal Inch):
0.9449
[DCX] Cutting Diameter Maximum (Decimal Inch):
0.9839
[LU] Usable Length (Decimal Inch):
2.9532
[DCON] Connection Diameter (Decimal Inch):
1.0000
[DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
1.2598
[LS] Shank Length (mm):
56.01
[LS] Shank Length (Decimal Inch):
2.2051
[OAL] Overall Length (mm):
165.99
[OAL] Overall Length (Decimal Inch):
6.5350
