SF12DRA085M3, DRA Magic Drill 8.50-8.99mm Cutting Diameter, 3xD, Replaceable Tip Drill

SF12DRA085M3, DRA Magic Drill 8.50-8.99mm Cutting Diameter, 3xD, Replaceable Tip Drill

SKU:
THD08585
|
UPC:
4960664718764
$326.06
(No reviews yet)
Width:
1.54 (in)
Height:
1.54 (in)
Depth:
8.27 (in)
Current Stock:
Adding to cart… The item has been added
Description
SF12DRA085M3, DRA Magic Drill 8.50-8.99mm Cutting Diameter, 12.00mm Diameter Flange Shank, Coolant-Through Replaceable Tip Drill
Additional Information
Tool Style:
SF…DRA
Material:
Steel
Application:
Drilling
Hand:
Right-Hand
[DCN] Cutting Diameter Minimum (mm):
8.50
[DCX] Cutting Diameter Maximum (mm):
8.99
Drill Depth by Diameter Ratio:
3xD

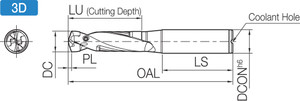

[LU] Usable Length (mm):
27.00
Number of Inserts:
1
Number of Flutes:
2
Shank Type:
Flange Shank
Weldon Flat:
No
[DCON] Connection Diameter (mm):
12.00
[DCSFMS] Contact Surface Diameter Machine Side (mm):
16.00
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Low Cutting Force Design Improves Hole Accuracy
Feature 2:
Optimal Web Thickness Limits Deflection
Feature 3:
Fine Chip Breaking Even in Deep Hole Drilling Applications
Feature 4:
Easy Insert Replacement
Feature 5:
Long Tool Life and Stable Machining of Various Workpieces
ANSI Part Number:
SF12DRA085M3
ISO Part Number:
SF12-DRA085M-3
US Stock:
3
Worldwide Stock:
0
Compatible Inserts (Partial):
DA0850M-… ~ DA0890M-…
Old Material Number:
8845581
Clamp Screw:
HS-2524TRP
Wrench (for Clamp Screw):
FTP-5
Tightening Torque:
0.5 Nm (4.4 in/lb)
[DC] Cutting Diameter (Decimal Inch):
0.3347 - 0.3539
[DC] Cutting Diameter (mm):
8.50 - 8.99
[DCN] Cutting Diameter Minimum (Decimal Inch):
0.3347
[DCX] Cutting Diameter Maximum (Decimal Inch):
0.3539
[LU] Usable Length (Decimal Inch):
1.0630
[DCON] Connection Diameter (Decimal Inch):
0.4724
[DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
0.6299
[LS] Shank Length (mm):
45.00
[LS] Shank Length (Decimal Inch):
1.7717
[OAL] Overall Length (mm):
86.00
[OAL] Overall Length (Decimal Inch):
3.3858
