SF16DRA110M15, DRA Magic Drill 11.00-11.49mm Cutting Diameter, 1.5xD, Replaceable Tip Drill

SF16DRA110M15, DRA Magic Drill 11.00-11.49mm Cutting Diameter, 1.5xD, Replaceable Tip Drill

SKU:
THD11521
$301.20
(No reviews yet)
Width:
1.54 (in)
Height:
1.54 (in)
Depth:
8.27 (in)
Current Stock:
Adding to cart… The item has been added
Description
SF16DRA110M15, DRA Magic Drill 11.00-11.49mm Cutting Diameter, 16.00mm Diameter Flange Shank, Coolant-Through Replaceable Tip Drill
Additional Information
Tool Style:
SF…DRA
Material:
Steel
Application:
Drilling
Hand:
Right-Hand
[DCN] Cutting Diameter Minimum (mm):
11.00
[DCX] Cutting Diameter Maximum (mm):
11.49
Drill Depth by Diameter Ratio:
1.5xD

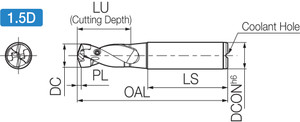

[LU] Usable Length (mm):
17.30
Number of Inserts:
1
Number of Flutes:
2
Shank Type:
Flange Shank
Weldon Flat:
No
[DCON] Connection Diameter (mm):
16.00
[DCSFMS] Contact Surface Diameter Machine Side (mm):
20.00
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Low Cutting Force Design Improves Hole Accuracy
Feature 2:
Optimal Web Thickness Limits Deflection
Feature 3:
Fine Chip Breaking Even in Deep Hole Drilling Applications
Feature 4:
Easy Insert Replacement
Feature 5:
Long Tool Life and Stable Machining of Various Workpieces
ANSI Part Number:
SF16DRA110M15
ISO Part Number:
SF16-DRA110M-1.5
Compatible Inserts (Partial):
DA1100M-…~DA1140M-…
Old Material Number:
8608333
Clamp Screw:
HS-2534TRP
Wrench (for Clamp Screw):
FTP-5
Tightening Torque:
0.5 Nm (4.4 in/lb)
[DC] Cutting Diameter (Decimal Inch):
0.4331 - 0.4524
[DC] Cutting Diameter (mm):
11.00 - 11.49
[DCN] Cutting Diameter Minimum (Decimal Inch):
0.4331
[DCX] Cutting Diameter Maximum (Decimal Inch):
0.4524
[LU] Usable Length (Decimal Inch):
0.6811
[DCON] Connection Diameter (Decimal Inch):
0.6299
[DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
0.7874
[LS] Shank Length (mm):
48.00
[LS] Shank Length (Decimal Inch):
1.8898
[OAL] Overall Length (mm):
82.70
[OAL] Overall Length (Decimal Inch):
3.2559
