SFR 701B, Face Grooving Blade

SFR 701B, Face Grooving Blade

SKU:
THC05066
|
UPC:
4960664010943
$63.18
(No reviews yet)
Width:
1.26 (in)
Height:
0.67 (in)
Depth:
1.77 (in)
Current Stock:
Adding to cart… The item has been added
Description

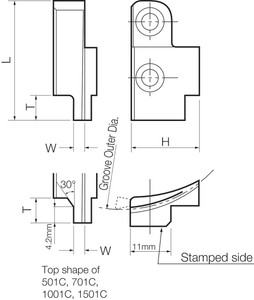

SFR 701B, Right-Hand, Face Grooving Style, Face Grooving Blade with a 70.00mm Minimum Face Groove Diameter for Face Grooving Applications
Additional Information
Tool Style:
SF
Material:
Steel
Grooving Type:
Face Grooving
Application:
Face Grooving
Hand:
Right-Hand
[CDX] Max Depth of Cut (mm):
4.80
[DAXN] Minimum Face Groove Diameter (mm):
70.00
[DAXX] Maximum Face Groove Diameter (Decimal Inch):
3.9370
[DAXX] Maximum Face Groove Diameter (mm):
100.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Top Clamp
Unit (inch/mm):
mm
Feature 1:
Right-Hand Face Grooving Blade
Feature 2:
3.9370 inch Maximum Face Groove Diameter
Feature 3:
Compatible with GVR 250
Feature 4:
350-020B, GVFR 300-150BR Inserts
ANSI Part Number:
SFR701B
ISO Part Number:
SFR-701B
US Stock:
0
Worldwide Stock:
19
Compatible Inserts (Partial):
GVFR250~350-020B, GVFR300-150BR
Old Material Number:
8809683
Compatible Toolholder (Partial):
GFVSR…-HB, GFVTR…-HB
[CDX] Max Depth of Cut (Decimal Inch):
0.1890
[DAXN] Minimum Face Groove Diameter (Decimal Inch):
2.7559
