SHA08250135, Adjustable Boring Bar Sleeve

SHA08250135, Adjustable Boring Bar Sleeve

SKU:
THC09483
|
UPC:
4960664594115
$215.74
(No reviews yet)
Width:
1.38 (in)
Height:
1.14 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description

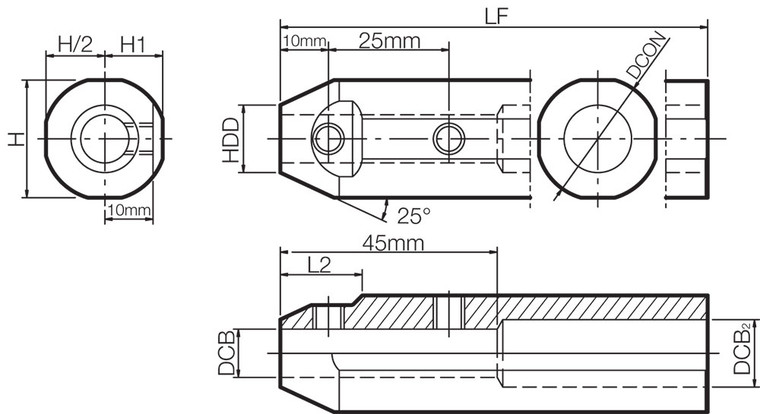

SHA08250135 Adjustable Boring Bar Sleeve with a 25.00mm Shank Diameter and a 8.00mm Bar Hole Diameter
Additional Information
Tool Style:
SHA
Material:
Steel
Application:
Boring
[DCB] Connection Bore Diameter (mm):
8.00
[H] Shank Height (mm):
24.00
[DCON] Connection Diameter (mm):
25.00
Insert Holding Method:
n/a
Unit (inch/mm):
mm
Feature 1:
Rigid Design
Feature 2:
Adjustable Bar Overhang Length
Feature 3:
For Boring Applications
Feature 4:
Compatible with A08..-…, C08..-…, E08..-…, S08..-… Boring Bars
ANSI Part Number:
SHA08250135
ISO Part Number:
SHA0825.0-135
US Stock:
2
Worldwide Stock:
5
Old Material Number:
8838550
Clamp Screw:
HS6X4P
Wrench (for Clamp Screw):
LW-3
Compatible Bars (Partial):
A08..-…, C08..-…, E08..-…, S08..-…
Shank Type:
Straight / Cylindrical
[LF] Functional Length (mm):
135.00
[DCB] Connection Bore Diameter (Decimal Inch):
0.3150
[H] Shank Height (Decimal Inch):
0.9449
[DCON] Connection Diameter (Decimal Inch):
0.9843
[LF] Functional Length (Decimal Inch):
5.3150
