SHE 202543, Adjustable Sleeve (Drilling) for MAGIC DRILL (DRV / DRZ / DRX)

SHE 202543, Adjustable Sleeve (Drilling) for MAGIC DRILL (DRV / DRZ / DRX)

SKU:
THD02000
|
UPC:
4960664200870
$236.89
(No reviews yet)
Width:
2.48 (in)
Height:
2.01 (in)
Depth:
6.61 (in)
Current Stock:
Adding to cart… The item has been added
Description
SHE 202543, Adjustable Drilling Sleeve with a +0.40 to -0.20mm Diameter Adjustable Range for DRV, DRZ, and DRX MAGIC Drills
Additional Information
Tool Style:
SHE
Material:
Steel
Application:
Drilling
Hand:
Neutral

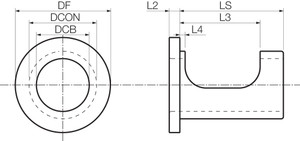

[DCB] Connection Bore Diameter (mm):
20.00
[DCON] Connection Diameter (mm):
25.00
Unit (inch/mm):
mm
Feature 1:
Adjustable Sleeve for DRV, DRZ, and DRX Magic Drills
Feature 2:
+0.40 to -0.20mm Diameter Adjustment Range
Feature 3:
20.00mm Applicable Drill Shank Diameter
ANSI Part Number:
SHE202543
ISO Part Number:
SHE2025-43
US Stock:
0
Worldwide Stock:
0
Old Material Number:
8806833
Compatible Drill Body (Partial):
DRV, DRZ, DRX
[DCB] Connection Bore Diameter (Decimal Inch):
0.7874
[DCON] Connection Diameter (Decimal Inch):
0.9843
