SIGER 1616EEH, Internal Grooving Toolholder

SIGER 1616EEH, Internal Grooving Toolholder

SKU:
THC89536
|
UPC:
4960664530793
$272.24
(No reviews yet)
Width:
1.38 (in)
Height:
1.14 (in)
Depth:
7.09 (in)
Current Stock:
Adding to cart… The item has been added
Description
SIGER 1616EEH, Right-Hand Internal Grooving Holder with a 1.0000" Minimum Bore Diameter for Internal Grooving Applications
Additional Information
Tool Style:
SIGE
Material:
Steel
Grooving Type:
Internal Grooving
Application:
Internal Grooving
Hand:
Right-Hand

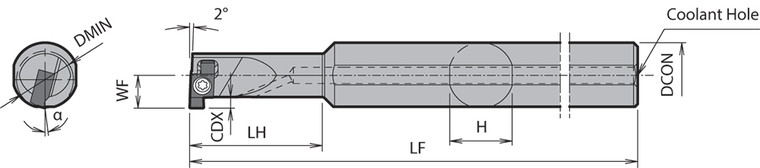

[KAPR] Tool Entering Angle (Degree):
Insert Reliant
[CDX] Max Depth of Cut (mm):
6.50
[CWN] Cutting Width Minimum (mm):
1.00
[CWX] Cutting Width Maximum (mm):
1.00
[DMIN] Minimum Bore Diameter (mm):
25.40
[H] Shank Height (mm):
24.38
[DCON] Connection Diameter (mm):
25.40
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Screw
Unit (inch/mm):
inch
Feature 1:
Right-Hand Toolholder
Feature 2:
Application: Internal Grooving
Feature 3:
Clamp Screw Insert Holding Design
Feature 4:
Compatible with Right-Hand GER…E, GER…EM Inserts
Feature 5:
Internal screw clamp holder provides excellent chip evacuation
ANSI Part Number:
SIGER1616EEH
ISO Part Number:
SIGER16-16E-EH
US Stock:
5
Worldwide Stock:
0
Compatible Inserts (Partial):
GER…E, GER…EM
Old Material Number:
8825473
Insert Screw:
SB-4085TR
Wrench (for Insert Screw):
FT-15
[LF] Functional Length (mm):
200.15
[LH] Head Length (mm):
45.01
[CW] Cutting Width (Decimal Inch):
0.0394
[CW] Cutting Width (mm):
1.00
[CDX] Max Depth of Cut (Decimal Inch):
0.2559
[CWN] Cutting Width Minimum (Decimal Inch):
0.0394
[CWX] Cutting Width Maximum (Decimal Inch):
0.0394
[DMIN] Minimum Bore Diameter (Decimal Inch):
1.0000
[H] Shank Height (Decimal Inch):
0.9598
[DCON] Connection Diameter (Decimal Inch):
1.0000
[LF] Functional Length (Decimal Inch):
7.8799
[LH] Head Length (Decimal Inch):
1.7721
