SINL 1516S11, Indexable Internal Threading Toolholder

SINL 1516S11, Indexable Internal Threading Toolholder

SKU:
THC04101
|
UPC:
4960664126576
$192.08
(No reviews yet)
Width:
1.38 (in)
Height:
1.14 (in)
Depth:
7.09 (in)
Current Stock:
Adding to cart… The item has been added
Description
SINL 1516S11, Left-Hand, Indexable Internal Threading Toolholder with a 15.00mm Minimum Bore Diameter for Internal Threading Applications
Additional Information
Tool Style:
SIN
Material:
Steel
Application:
Internal Threading
Hand:
Left-Hand
Thread Type:
Internal

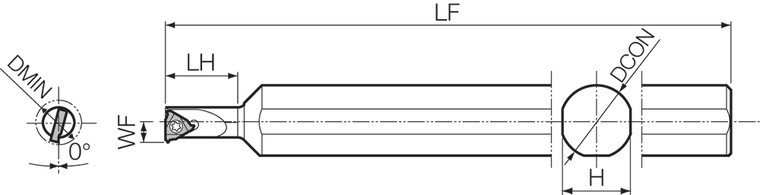

[DMIN] Minimum Bore Diameter (mm):
15.00
[H] Shank Height (mm):
14.00
[DCON] Connection Diameter (mm):
16.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Left-Hand Toolholder for Internal Threading
Feature 2:
Minimum Bore Diameter 15.00mm
Feature 3:
Compatible with Left-Hand, 11IL… inserts
ANSI Part Number:
SINL1516S11
ISO Part Number:
SINL1516S-11
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
11IL…
Old Material Number:
8813533
Insert Screw:
SB-2TR
Wrench (for Insert Screw):
FT-8
[LF] Functional Length (mm):
150.00
[LH] Head Length (mm):
30.00
[DMIN] Minimum Bore Diameter (Decimal Inch):
0.5906
[H] Shank Height (Decimal Inch):
0.5512
[DCON] Connection Diameter (Decimal Inch):
0.6299
[LF] Functional Length (Decimal Inch):
5.9055
[LH] Head Length (Decimal Inch):
1.1811
Series Description (PeopleSoft):
Lay-down Threading
Series Description:
Lay-down Threading
