SNG 633 TN60 Grade Uncoated Cermet, Indexable Turning Insert
$18.35
(No reviews yet)
Write a Review
SNG 633 TN60 Grade Uncoated Cermet, Indexable Turning Insert
SNG 633 TN60 Grade Uncoated Cermet, 0 Degree, Square, Negative Rake Angle, Neutral Turning Insert for Continuous and Medium-Roughing in (P) Carbon/Alloy Steel
- Tool Style:
- SNG
- Insert Size:
- 633
- Insert Grade:
- TN60
- Material:
- Cermet
- Coating Process:
- Uncoated

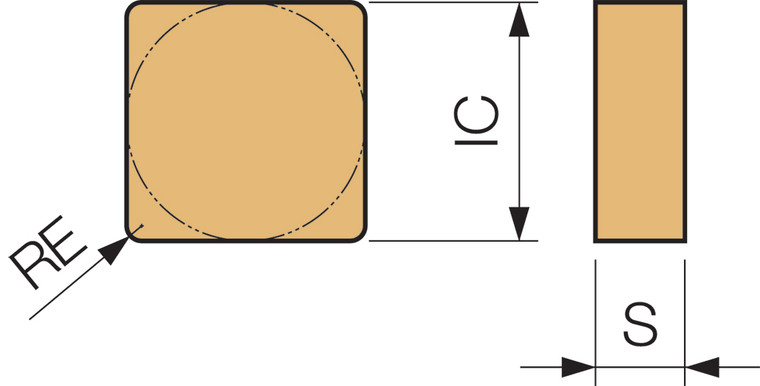

- [IC] Inscribed Circle (mm):
- 19.05
- [S] Thickness (mm):
- 4.76
- [RE] Corner Radius (mm):
- 1.60
- Application:
- Boring|Chamfering|External Turning|Facing
- Hand:
- Neutral
- Rake:
- Negative
- [EPSR] Insert Included Angle (Degree):
- 90
- Primary Workpiece Material:
- (P) Carbon/Alloy Steel
- Insert Shape:
- 90 Degree Square
- Number of Cutting Edges:
- 8
- Usage Classification:
- Continuous
- Cutting Range:
- Medium-Roughing
- Insert Holding Method:
- Clamp
- Feature 1:
- Insert for External Turning, Facing, Chamfering, Boring
- Feature 2:
- 8 Cutting Edges
- Feature 3:
- General purpose cermet with superior wear resistance and toughness
- Feature 4:
- Application: Cutting of steel and stainless steel
- ANSI Part Number:
- SNG633TN60
- ISO Part Number:
- SNG633
- US Stock:
- 0
- Worldwide Stock:
- 0
- Old Material Number:
- 8850531
- [IC] Inscribed Circle:
- 3/4"
- [S] Thickness:
- 3/16"
- [RE] Corner Radius:
- 1/16"
- Series Description (PeopleSoft):
- ISO Insert
- Series Description:
- ISO Insert
