SNGA 432S00730MET KBN25M Grade CBN, Indexable Turning Insert
$70.88
(No reviews yet)
Write a Review
SNGA 432S00730MET KBN25M Grade CBN, Indexable Turning Insert
SNGA 432S00730MET KBN25M Grade CBN, 0 Degree, Square, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Medium in (H) Hardened Materials
- Tool Style:
- SNGA
- Insert Size:
- 432
- Insert Grade:
- KBN25M
- Material:
- CBN
- Coating Process:
- PVD

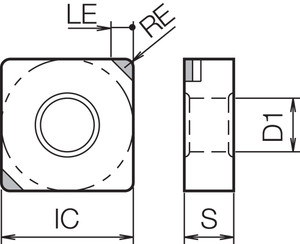

- [IC] Inscribed Circle (mm):
- 12.70
- [S] Thickness (mm):
- 4.76
- [RE] Corner Radius (mm):
- 0.80
- Application:
- Boring|Chamfering|External Turning|Facing
- Hand:
- Neutral
- Rake:
- Negative
- [EPSR] Insert Included Angle (Degree):
- 90
- Primary Workpiece Material:
- (H) Hardened Materials
- Insert Shape:
- 90 Degree Square
- Number of Cutting Edges:
- 2
- Usage Classification:
- Light Interruption
- Cutting Range:
- Medium
- Insert Holding Method:
- Screw or Clamp
- Feature 1:
- Insert for External Turning, Facing, Chamfering, Boring
- Feature 2:
- Multi-Edge / Tough with 2 Cutting Edges
- Feature 3:
- Heat-resistant MEGACOAT on micro-grain CBN with heat resistant binder phase
- Feature 4:
- Application: Stable cutting of hardened steel at high speed
- ANSI Part Number:
- SNGA432S00730METKBN25M
- ISO Part Number:
- SNGA120408S01730MET
- US Stock:
- 0
- Worldwide Stock:
- 1
- Old Material Number:
- 8824889
- Compatible Toolholder (Partial):
- DSBNR...-12, DSBNL...-12, MSSNR...-4…, MSSNL...-4…, PSBNR…-12, PSBNL…-12, PSKNR…-12, PSKNL…-12, PSSNR…-12, PSSNL…-12, PSDNN…-12, HSRNR...-4D, HSRNL...-4D, HSDNN...-4D, ...DSKNR12..., ...DSKNL12...
- [IC] Inscribed Circle:
- 1/2"
- [S] Thickness:
- 3/16"
- [RE] Corner Radius:
- 1/32"
- [LE] CBN/PCD Tip Length (Decimal Inch):
- 0.0709
- [LE] CBN/PCD Tip Length (mm):
- 1.80
