SNGA 432T00825 PT600M Grade Ceramic, Indexable Turning Insert
$20.11
(No reviews yet)
Write a Review
SNGA 432T00825 PT600M Grade Ceramic, Indexable Turning Insert
SNGA 432T00825 PT600M Grade Ceramic, 0 Degree, Square, Negative Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (H) Hardened Materials and (K) Gray Cast Iron
- Tool Style:
- SNGA
- Insert Size:
- 432
- Insert Grade:
- PT600M
- Material:
- Ceramic
- Coating Process:
- PVD

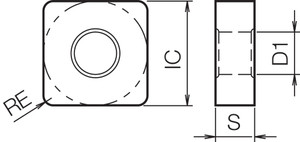

- [IC] Inscribed Circle (mm):
- 12.70
- [S] Thickness (mm):
- 4.76
- [RE] Corner Radius (mm):
- 0.80
- Application:
- Boring|Chamfering|External Turning|Facing
- Hand:
- Neutral
- Rake:
- Negative
- [EPSR] Insert Included Angle (Degree):
- 90
- Primary Workpiece Material:
- (H) Hardened Materials
- Insert Shape:
- 90 Degree Square
- Number of Cutting Edges:
- 8
- Usage Classification:
- Continuous
- Cutting Range:
- Finishing-Medium
- Insert Holding Method:
- Screw or Clamp
- Feature 1:
- Insert for External Turning, Facing, Chamfering, Boring
- Feature 2:
- 8 Cutting Edges
- Feature 3:
- Heat-resistant MEGACOAT coating on aluminum oxide and titanium carbide ceramic (MEGACOAT Al2O3+TiC)
- Feature 4:
- Application: Semi-roughing to finishing of cast iron, hard materials and hardened roll materials
- ANSI Part Number:
- SNGA432T00825PT600M
- ISO Part Number:
- SNGA120408T02025
- US Stock:
- 170
- Worldwide Stock:
- 340
- Old Material Number:
- 8828004
- Compatible Toolholder (Partial):
- DSBNR...-12, DSBNL...-12, MSSNR...-4…, MSSNL...-4…, PSBNR…-12, PSBNL…-12, PSKNR…-12, PSKNL…-12, PSSNR…-12, PSSNL…-12, PSDNN…-12, HSRNR...-4D, HSRNL...-4D, HSDNN...-4D, ...DSKNR12..., ...DSKNL12...
- [IC] Inscribed Circle:
- 1/2"
- [S] Thickness:
- 3/16"
- [RE] Corner Radius:
- 1/32"
