SNMG 431PQ PV710 Grade PVD Cermet, Indexable Turning Insert
$13.21
(No reviews yet)
Write a Review
SNMG 431PQ PV710 Grade PVD Cermet, Indexable Turning Insert
SNMG 431PQ PV710 Grade PVD Cermet, 0 Degree, Square, Negative Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (P) Carbon/Alloy Steel
- Tool Style:
- SNMG
- Insert Size:
- 431
- Chipbreaker:
- PQ
- Insert Grade:
- PV710
- Material:
- Cermet
- Coating Process:
- PVD

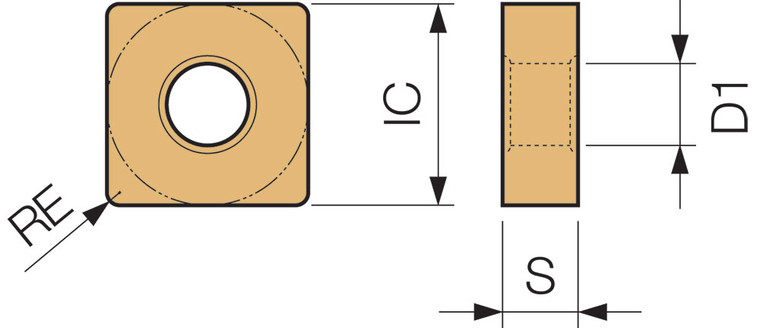

- [IC] Inscribed Circle (mm):
- 12.70
- [S] Thickness (mm):
- 4.76
- [RE] Corner Radius (mm):
- 0.40
- Application:
- Boring|Chamfering|External Turning|Facing
- Hand:
- Neutral
- Rake:
- Negative
- [EPSR] Insert Included Angle (Degree):
- 90
- Primary Workpiece Material:
- (P) Carbon/Alloy Steel
- Insert Shape:
- 90 Degree Square
- Number of Cutting Edges:
- 8
- Usage Classification:
- Continuous
- Cutting Range:
- Finishing-Medium
- Insert Holding Method:
- Screw or Clamp
- Feature 1:
- Insert for External Turning, Facing, Chamfering, Boring
- Feature 2:
- 8 Cutting Edges
- Feature 3:
- MEGACOAT NANO efficient machining with high quality surface finishes and superior wear and adhesion resistance
- Feature 4:
- Application: Recommended cermet for long tool life and stable machining for high speed continuous cuts
- ANSI Part Number:
- SNMG431PQPV710
- ISO Part Number:
- SNMG120404PQ
- US Stock:
- 0
- Worldwide Stock:
- 10
- Old Material Number:
- 8846870
- Compatible Toolholder (Partial):
- DSBNR...-12, DSBNL...-12, MSSNR…-4..., MSSNL…-4..., PSBNR…-12, PSBNL…-12, PSKNR…-12, PSKNL…-12, PSSNR…-12, PSSNL…-12, PSDNN…-12, ...DSKNR12..., ...DSKNL12...
- [IC] Inscribed Circle:
- 1/2"
- [S] Thickness:
- 3/16"
- [RE] Corner Radius:
- 1/64"
