SPGR 321L TN610 Grade Uncoated Cermet, Indexable Turning Insert

SPGR 321L TN610 Grade Uncoated Cermet, Indexable Turning Insert

SKU:
TSS05421
$16.55
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
SPGR 321L TN610 Grade Uncoated Cermet, 11 Degree, Square, Positive Rake Angle, Left-Hand Turning Insert for Continuous and Finishing in (P) Carbon/Alloy Steel
Additional Information
Tool Style:
SPGR
Insert Size:
321
Insert Grade:
TN610
Material:
Cermet
Coating Process:
Uncoated

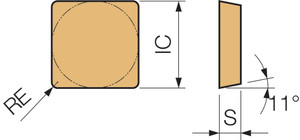

[IC] Inscribed Circle:
3/8"
[IC] Inscribed Circle (mm):
9.525
[S] Thickness:
1/8"
[S] Thickness (mm):
3.18
[RE] Corner Radius:
1/64"
[RE] Corner Radius (mm):
0.40
Application:
Boring|Chamfering|External Turning|Facing
Hand:
Left-Hand
Rake:
Positive
[EPSR] Insert Included Angle (Degree):
90
Primary Workpiece Material:
(P) Carbon/Alloy Steel
Insert Shape:
90 Degree Square
Number of Cutting Edges:
4
Usage Classification:
Continuous
Cutting Range:
Finishing
Insert Holding Method:
Clamp
Feature 1:
Insert for External Turning, Facing, Chamfering, Boring
Feature 2:
4 Cutting Edges
Feature 3:
Three hybrid technology attributes maintain superior surface finish and machining stability
Feature 4:
Application: Stable machining of steel
ANSI Part Number:
SPGR321LTN610
ISO Part Number:
SPGR090304L
Old Material Number:
8847800
Compatible Toolholder (Partial):
CSSPL...-09N, ...-CSKPR09...
