SPGR 321L TN620 Grade Uncoated Cermet, Indexable Turning Insert
$16.55
(No reviews yet)
Write a Review

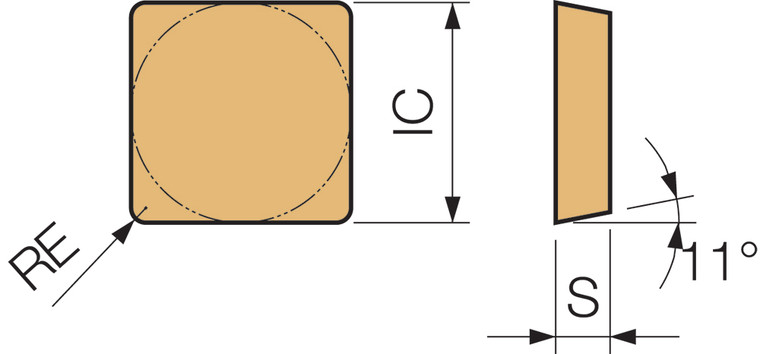

SPGR 321L TN620 Grade Uncoated Cermet, Indexable Turning Insert
SPGR 321L TN620 Grade Uncoated Cermet, 11 Degree, Square, Positive Rake Angle, Left-Hand Turning Insert for Light Interruption and Finishing in (P) Carbon/Alloy Steel
- Tool Style:
- SPGR
- Insert Size:
- 321
- Insert Grade:
- TN620
- Material:
- Cermet
- Coating Process:
- Uncoated
- [IC] Inscribed Circle (mm):
- 9.525
- [S] Thickness (mm):
- 3.18
- [RE] Corner Radius (mm):
- 0.40
- Application:
- Boring|Chamfering|External Turning|Facing
- Hand:
- Left-Hand
- Rake:
- Positive
- [EPSR] Insert Included Angle (Degree):
- 90
- Primary Workpiece Material:
- (P) Carbon/Alloy Steel
- Insert Shape:
- 90 Degree Square
- Number of Cutting Edges:
- 4
- Usage Classification:
- Light Interruption
- Cutting Range:
- Finishing
- Insert Holding Method:
- Clamp
- Feature 1:
- Insert for External Turning, Facing, Chamfering, Boring
- Feature 2:
- 4 Cutting Edges
- Feature 3:
- Inner structure has high toughness and chipping resistance along with thermal shock resistance
- Feature 4:
- Application: Recommended cermet for stable steel machining and high quality surface finish
- ANSI Part Number:
- SPGR321LTN620
- ISO Part Number:
- SPGR090304L
- US Stock:
- 0
- Worldwide Stock:
- 10
- Old Material Number:
- 8862671
- Compatible Toolholder (Partial):
- CSSPL...-09N, ...-CSKPR09...
- [IC] Inscribed Circle:
- 3/8"
- [S] Thickness:
- 1/8"
- [RE] Corner Radius:
- 1/64"
