SPM 422 TN610 Grade Uncoated Cermet, Indexable Turning Insert

SPM 422 TN610 Grade Uncoated Cermet, Indexable Turning Insert

SKU:
TSS05447
$11.16
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
SPM 422 TN610 Grade Uncoated Cermet, 11 Degree, Square, Positive Rake Angle, Neutral Turning Insert for Continuous and Medium in (P) Carbon/Alloy Steel
Additional Information
Tool Style:
SPM
Insert Size:
422
Insert Grade:
TN610
Material:
Cermet
Coating Process:
Uncoated

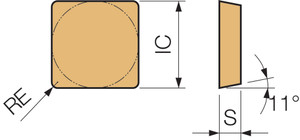

[IC] Inscribed Circle:
1/2"
[IC] Inscribed Circle (mm):
12.70
[S] Thickness:
1/8"
[S] Thickness (mm):
3.18
[RE] Corner Radius:
1/32"
[RE] Corner Radius (mm):
0.80
Application:
Boring|Chamfering|External Turning|Facing
Hand:
Neutral
Rake:
Positive
[EPSR] Insert Included Angle (Degree):
90
Primary Workpiece Material:
(P) Carbon/Alloy Steel
Insert Shape:
90 Degree Square
Number of Cutting Edges:
4
Usage Classification:
Continuous
Cutting Range:
Medium
Insert Holding Method:
Clamp
Feature 1:
Insert for External Turning, Facing, Chamfering, Boring
Feature 2:
Cast Iron / Without Chipbreaker with 4 Cutting Edges
Feature 3:
Three hybrid technology attributes maintain superior surface finish and machining stability
Feature 4:
Application: Stable machining of steel
ANSI Part Number:
SPM422TN610
ISO Part Number:
SPMN120308
Old Material Number:
8847808
Compatible Toolholder (Partial):
CSKPR...-12N, CSSPR...-12N, CSSPL...-12N, CSDPN...-12N, ...-CSKPR12...
