SPM 422 TN620 Grade Uncoated Cermet, Indexable Turning Insert
$11.74
(No reviews yet)
Write a Review
SPM 422 TN620 Grade Uncoated Cermet, Indexable Turning Insert
SPM 422 TN620 Grade Uncoated Cermet, 11 Degree, Square, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Medium in (P) Carbon/Alloy Steel
- Tool Style:
- SPM
- Insert Size:
- 422
- Insert Grade:
- TN620
- Material:
- Cermet
- Coating Process:
- Uncoated

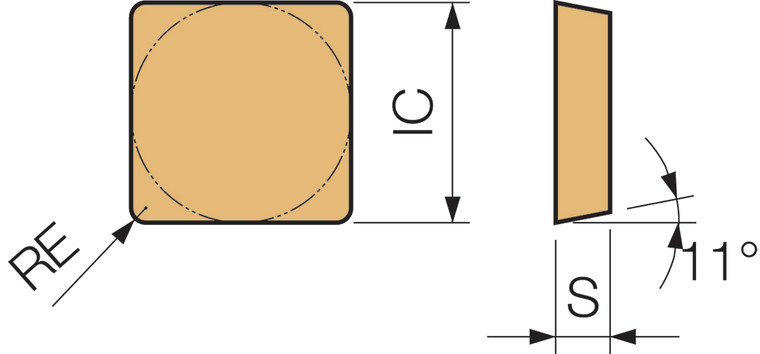

- [IC] Inscribed Circle (mm):
- 12.70
- [S] Thickness (mm):
- 3.18
- [RE] Corner Radius (mm):
- 0.80
- Application:
- Boring|Chamfering|External Turning|Facing
- Hand:
- Neutral
- Rake:
- Positive
- [EPSR] Insert Included Angle (Degree):
- 90
- Primary Workpiece Material:
- (P) Carbon/Alloy Steel
- Insert Shape:
- 90 Degree Square
- Number of Cutting Edges:
- 4
- Usage Classification:
- Light Interruption
- Cutting Range:
- Medium
- Insert Holding Method:
- Clamp
- Feature 1:
- Insert for External Turning, Facing, Chamfering, Boring
- Feature 2:
- Cast Iron / Without Chipbreaker with 4 Cutting Edges
- Feature 3:
- Inner structure has high toughness and chipping resistance along with thermal shock resistance
- Feature 4:
- Application: Recommended cermet for stable steel machining and high quality surface finish
- ANSI Part Number:
- SPM422TN620
- ISO Part Number:
- SPMN120308
- US Stock:
- 0
- Worldwide Stock:
- 0
- Old Material Number:
- 8862687
- Compatible Toolholder (Partial):
- CSKPR...-12N, CSSPR...-12N, CSSPL...-12N, CSDPN...-12N, ...-CSKPR12...
- [IC] Inscribed Circle:
- 1/2"
- [S] Thickness:
- 1/8"
- [RE] Corner Radius:
- 1/32"
